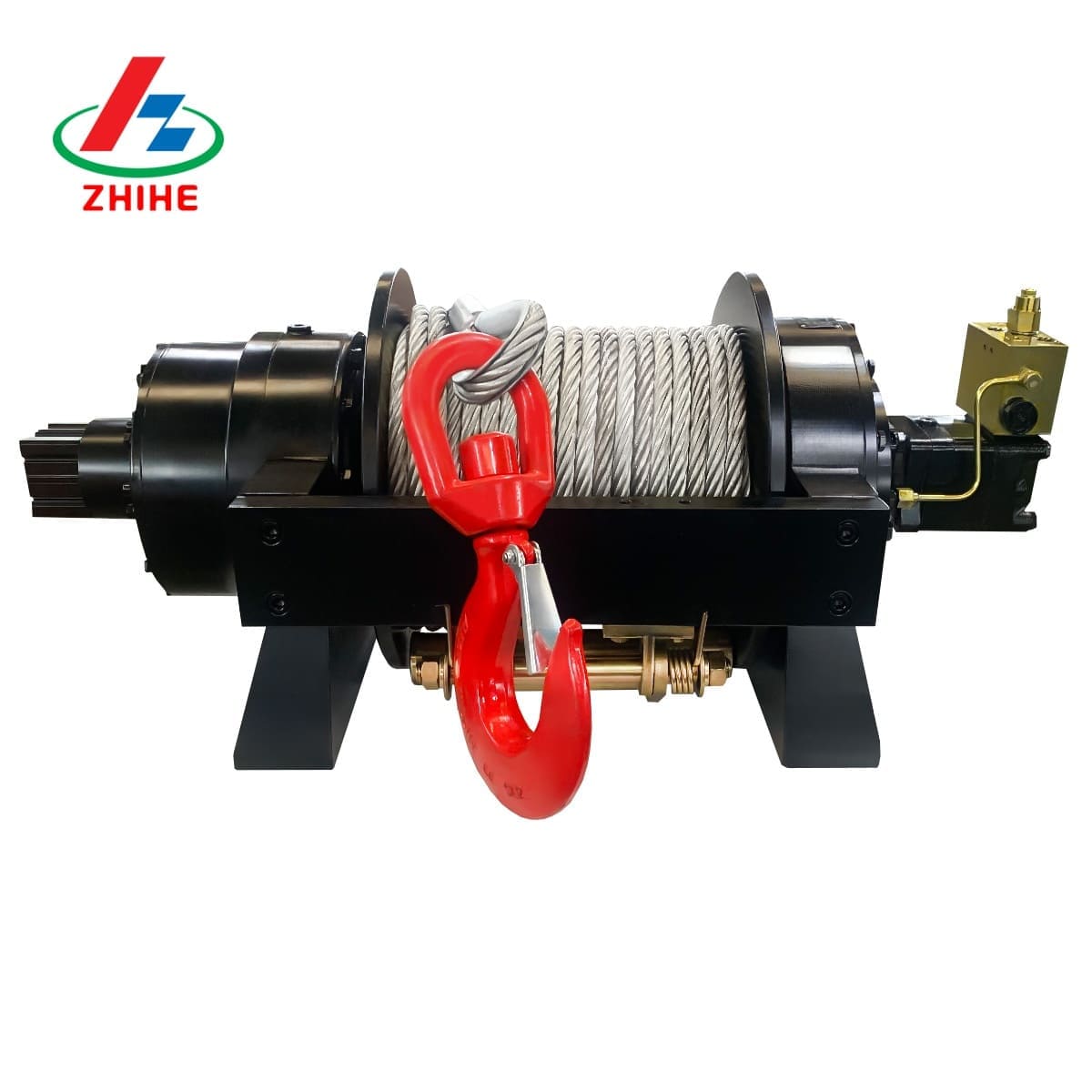

8 Ton Hydraulic Winch

The 8 Ton Hydraulic Winch (80 kN / 17,600 lbs rated line pull) delivers dependable pulling power for tow trucks, recovery wreckers, and equipment trailers. Engineered with a heavy-duty 20CrMnTi hardened planetary gearbox and automatic multi-disc brake, it ensures maximum torque efficiency, precise control, and 100% load holding.

• Continuous Duty: Reliable pulling performance under extreme recovery conditions.

• Compact Planetary Drive: High torque density with low noise and smooth operation.

• Manual / Air Clutch: Fast wire rope payout for quick setup on recovery scenes.

Designed specifically for heavy-duty horizontal pulling and vehicle transport:

• Tow & Recovery Wreckers: Rollback flatbeds, slide-beds, and heavy wreckers.

• Machinery Trailers: Loading tracked equipment, rollers, and disabled vehicles onto lowbeds.

• Utility & Mining Trucks: Field recovery, equipment hauling, and cable pulling.

• Gearbox: Hardened 20CrMnTi planetary gearing with a fully sealed ductile iron housing.

• Cable Drum: Holds 35–40 m of $\Phi 15$ / $\Phi 16$ mm wire rope with smooth rope winding.

• Brake System: Spring-applied, hydraulic-release multi-disc static brake for positive holding.

• Roller Fairlead: 4-way heavy-duty steel roller reduces cable friction and wear.
