Selecting a recovery hydraulic winch requires balancing rated pulling force, continuous duty cycles, and vehicle chassis integration. In this technical sizing guide, we evaluate 10,000 lb to 18,000 lb recovery winches to help fleet managers, chassis upfitters, and recovery operators select the right hardware.
Matching your recovery gear to true field resistances prevents stalled motors, fluid overheating, and structural cable failures. We examine hydraulic circuit sizing, drum layer capacity losses, rope selection, and real-world surface drag calculations. Let’s dial in the engineering specs for your next build.
Continuous Duty: Why Commercial Recovery Demands Hydraulic Power
Vehicle recovery operations generate high loads over long periods.
Recreational pulls often rely on 12V or 24V electric winches. However, electric winches operate under strict intermittent duty cycles. Sustained dragging builds heat rapidly in electric motor armatures, melting internal brush carriers and draining vehicle starter batteries.
A dedicated 4×4 hydraulic winch or industrial wrecker winch taps into the vehicle’s hydraulic circuit. This allows a continuous 100% duty cycle. As long as the truck engine idles and circulates fluid through a heat exchanger, your winch outputs full rated torque indefinitely without thermal derating.
Real-World Sizing: The 1.5x Multiplier and Drag Resistances
Sizing a winch solely on a vehicle curb weight invites catastrophic field failure. Off-road recovery involves deep mire resistance, frame hang-ups, and steep surface inclines that amplify mechanical drag.
The Baseline Formula
$$\text{Minimum Rated Pulling Capacity} = \text{Gross Vehicle Weight Rating (GVWR)} \times 1.5$$
For example, an 8,000 lb loaded wrecker requires at least a 12,000 lb capacity unit ($8{,}000 \times 1.5$).
Environmental Drag Coefficients
When a vehicle leaves the pavement, the force required to move it increases beyond rolling resistance:
- Hard Pavement / Packed Dirt: Adds 5%–10% of total vehicle weight.
- Loose Gravel / Tall Wet Grass: Adds 15%–20% of total vehicle weight.
- Hub-Deep Wet Sand / Soft Earth: Adds 30%–40% of total vehicle weight.
- Axle-Deep Liquid Mud: Adds 50%–100% of total vehicle weight.
- Incline Factor: Add $1\%$ to the total pulling resistance for every $1^\circ$ of slope grade.
If an 8,000 lb truck sinks to its axles in deep marshland on a $15^\circ$ slope, the required extraction pull approaches:
$$8{,}000\text{ lbs} \times (1.0 \text{ mire factor} + 0.15 \text{ gradient}) = 9{,}200\text{ lbs of active drag}$$
Using the $1.5\times$ safety margin, the operator needs a 13,800 lb rated line pull, moving the specification from a standard 10k/12k unit into a 15k or 18k commercial winch.
Capacity Breakdown: 10,000 lb to 18,000 lb Winch Ratings
Choosing the right capacity rating ensures proper pulling torque while keeping front-axle tare weights within DOT limits.

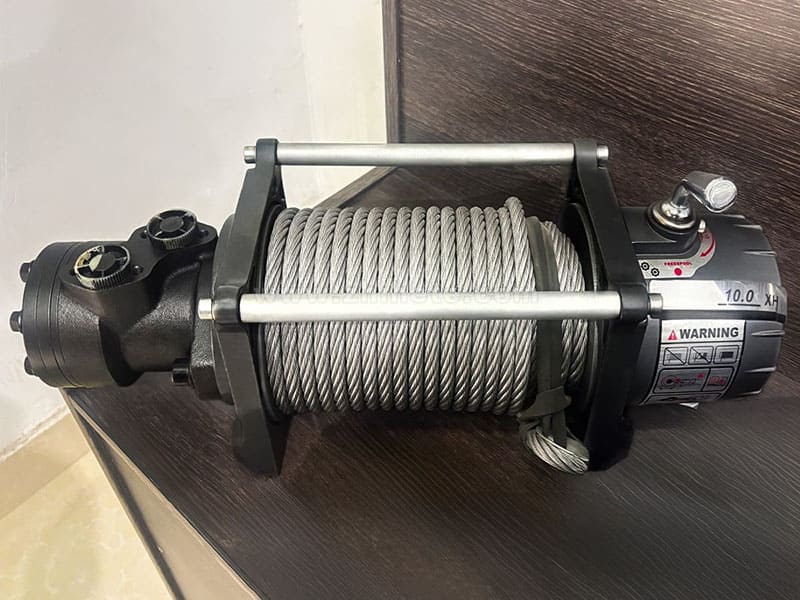

10,000 lb Hydraulic Winch: Light Commercial & Utility 4×4 Fleets
The 10000 lb hydraulic winch fits lightweight utility trucks, forestry service pickups, and expedition vehicles.
- Target Applications: Vehicles with a GVWR up to 6,500 lbs.
- Hydraulic Requirements: Low-displacement orbital motors operate efficiently on low fluid volumes (typically 10–13 GPM at 1,500–1,800 PSI).
- Chassis Integration: Compact envelope dimensions fit standard front receiver mounts, modular steel bumpers, and gooseneck trailer necks without extensive frame bracing.
12,000 lb Hydraulic Winch: The Benchmark for Rollback Wreckers
The 12000 lb hydraulic winch is the standard for auto transport trailers and single-car carrier beds.
- Target Applications: Rolling stock, light commercial vans, and passenger haulers with a GVWR up to 8,000 lbs.
- Design Highlights: Provides an ideal balance of drum retrieval speed and pulling torque. It pulls rolling chassis onto rollback beds without excessive line delay.

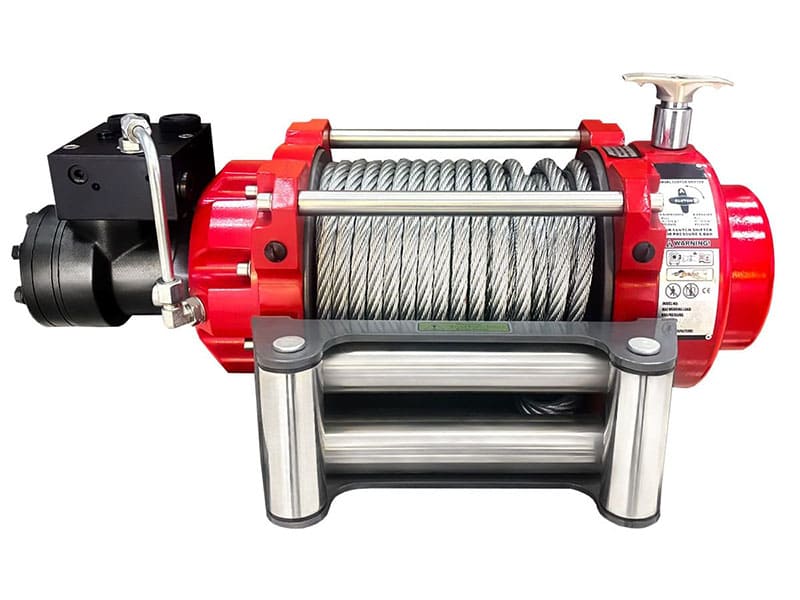

15,000 lb (15k) Hydraulic Winch: Industrial Towing & Heavy Tilt-Beds
Stepping into municipal and commercial recovery requires a 15000 lb hydraulic winch (often referred to in fleet specs as a 15k hydraulic winch).
- Target Applications: Class 5–7 medium-duty chassis, municipal recovery rigs, and tandem-axle tilt trailers carrying industrial forklifts or skid steers.
- Design Highlights: Features thicker ductile-iron frame castings and enlarged drum cores. These prevent drum barrel crushing under the compressive hoop stress generated by high-tension wire rope wraps.

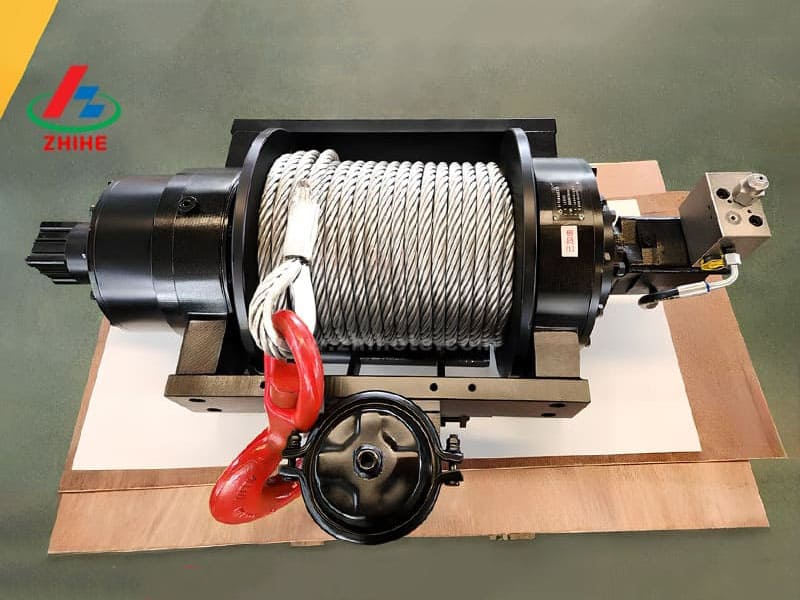

18,000 lb Hydraulic Winch: Severe-Duty Extraction Platforms
The 18000 lb hydraulic winch sits at the top tier of frame-mounted commercial recovery winches before jumping to multi-ton crane hoists.
- Target Applications: Heavy wrecker rotators, logging trucks, oilfield lowboys, and military logistics platforms.
- Design Highlights: High-torque planetary drives combined with dual-counterbalance load-holding valves lock suspended loads without brake slippage, even during pressure fluctuations.
Technical Specifications: 10k to 18k Comparison
| Model Classification | Rated Pull (First Layer) | Recommended Vehicle GVWR | Cable Diameter | Typical Working Pressure | Fluid Flow Demand |
| 10,000 lb | 10,000 lbs (4,535 kg) | Up to 6,600 lbs | 10 mm (3/8 in) | 1,750 PSI (120 bar) | 12 GPM (45 L/min) |
| 12,000 lb | 12,000 lbs (5,443 kg) | Up to 8,000 lbs | 11 mm (7/16 in) | 2,000 PSI (140 bar) | 15 GPM (57 L/min) |
| 15,000 lb | 15,000 lbs (6,804 kg) | Up to 10,000 lbs | 14 mm (9/16 in) | 2,300 PSI (160 bar) | 18 GPM (68 L/min) |
| 18,000 lb | 18,000 lbs (8,165 kg) | Up to 12,000 lbs | 16 mm (5/8 in) | 2,500 PSI (175 bar) | 20 GPM (75 L/min) |
Hydraulic Circuit Design: Power Steering vs. Transmission PTO
A hydraulic winch performs only as well as the circuit feeding it. Specifying a winch requires matching the power source to your duty requirements.
[Vehicle Engine]
├── Option A (10k-12k lbs) ──> [Power Steering Pump] ──> [Flow Control Valve] ──> [Winch Motor] ──> [Reservoir Tank]
└── Option B (15k-18k lbs) ──> [Transmission PTO] ──> [Gear / Piston Pump] ──> [Directional Spool] ──> [Winch Motor]
1. Power Steering Pump Tapping (Light-Duty 10k–12k)
Smaller 10,000 lb winches can plumb into an existing power steering circuit via a priority flow divider valve.
- Advantages: Avoids installing an aftermarket transmission power take-off (PTO). Keeps upfitting costs low.
- Limitations: Power steering pumps generate limited pressure (typically capped at 1,500–1,800 PSI) and lower flow (3–5 GPM). Line speeds are slow, and continuous pulling can overheat small steering fluid reservoirs without an auxiliary cooler.
2. Transmission PTO-Driven Pumps (Heavy-Duty 15k–18k)
For 15,000 lb and 18,000 lb winches, install a direct transmission PTO paired with a dedicated gear or piston pump.
- Advantages: Delivers full displacement pressure (2,500+ PSI) and high fluid volume (18–25 GPM). This configuration maintains high pulling speeds under maximum load without starving vehicle steering systems.
- Circuit Safeguards: Must include an inline relief valve calibrated 200 PSI above maximum system pressure, a 25-micron return filter, and a minimum 10-gallon hydraulic reservoir tank.
Drum Layer Loss: Why You Don’t Always Get Full Rated Capacity
A common operational error is assuming a 15,000 lb winch pulls 15,000 lbs at all times.
Rated pulling capacity is calculated exclusively on the first layer of rope wrapping around the bare drum barrel. As wire rope spools onto the drum, each successive layer increases the effective drum diameter. This acts like a higher gear ratio, trading pulling torque for line speed.
Layer 4 [ 10,650 lbs Pull ] ══════════════════════════════ (Fastest Line Speed)
Layer 3 [ 11,850 lbs Pull ] ════════════════════════
Layer 2 [ 13,350 lbs Pull ] ══════════════════
Layer 1 [ 15,000 lbs Pull ] ══════════ (Maximum Torque / Rated Spec)
[ Drum Core ]
- Layer 1 (Bare Drum): 100% of rated capacity (15,000 lbs).
- Layer 2: ~89% of rated capacity (13,350 lbs).
- Layer 3: ~79% of rated capacity (11,850 lbs).
- Layer 4 (Full Drum): ~71% of rated capacity (10,650 lbs).
When planning heavy pulls, pay out enough cable to reach the first or second layer on the drum, or use a snatch block to double your pulling capacity.
Cable Selection: Aircraft-Grade Steel vs. HMPE Synthetic
Equipping your winch with the correct line material impacts safety, operational speed, and weight.
Galvanized Aircraft-Grade Steel Cable
- Pros: Highly resistant to abrasive rocks, sharp chassis crossmembers, and flatbed corners. Resists UV degradation and internal drum heat build-up.
- Cons: High mass adds weight to the vehicle’s front suspension. Stores high kinetic energy under load, presenting snapping hazards if parted. Prone to kinking and bird-nesting if spooled improperly.
High-Modulus Polyethylene (HMPE) Synthetic Rope
- Pros: Up to 80% lighter than steel cable. It floats on water and stores minimal kinetic energy, dropping safely to the ground if severed. Speeds up line rigging for lone operators.
- Cons: Susceptible to cut failures on sharp edge transitions. Synthetic fibers can melt under high friction if wrapped over a drum holding an internal mechanical brake (requires external brake drums or specialized heat sleeves).
Essential Mechanical Features to Inspect
When sourcing recovery winches, look past the outer label and evaluate the internal drivetrain:
- Clutch & Freespool Systems:
Manually disengaging the drum ring gear on a 10k winch is fine, but pulling out 100 feet of heavy steel line on an 18k unit quickly exhausts operators. Look for pneumatic air-freespool clutches that integrate with on-board chassis air. This lets drivers free-spool the drum from the cab. - Gearing & Material Treatment:
Industrial winches rely on high-reduction planetary gear sets. Confirm gears use carburized and quenched alloy steel (such as 20CrMnTi) rather than cast or sintered iron. Hardened gear faces resist shearing shock loads when an unbraked vehicle surges during transit. - Hydraulic Braking Mechanisms:
Vehicle recovery winches require internal multi-disc wet brakes coupled with overcenter counterbalance valves. Unlike mechanical external band brakes, wet disc packs run submerged in gear oil inside the drum housing. They dissipate heat safely and prevent runaway loads during incline holding.
Frequently Asked Questions (FAQ)
Can I run a 15,000 lb hydraulic winch continuously without stopping?
Yes. Unlike electric winches, a hydraulic unit runs continuously as long as the hydraulic oil temperature stays within operating limits (usually under 80°C / 175°F). Ensure your reservoir tank volume and cooler capacity match your pump flow rate.
Why does my recovery winch pull slower under heavy load?
Slowing under load typically indicates that the hydraulic system is reaching its main relief valve pressure limit, bypassing fluid back to the tank. It can also stem from pump flow slippage caused by elevated oil temperatures or an undersized power steering pump.
How does a snatch block double line pull?
Routing your line through a snatch block connected to the stuck vehicle and anchoring the cable hook back to your truck chassis creates a 2:1 mechanical advantage. This cuts line speed in half while doubling effective pulling capacity, which also helps protect the winch motor during heavy recoveries.
Equipment Sourcing & Technical Support
Selecting the right recovery winch requires matching your hydraulic pump displacement, relief pressures, and chassis mounting configurations.
We supply proven, field-tested 10,000 lb to 18,000 lb hydraulic recovery winches, complete with factory-calibrated directional control valves, counterbalance blocks, and pneumatic freespool kits for fast fleet upfitting.
For industrial operations requiring pulls exceeding 20,000 lbs, or custom internal crane hoisting drives built with fail-safe automatic holding brakes, our engineering team manufactures purpose-built planetary drivetrains to match your CAD specifications.
Contact our technical sales engineers to request 3D STEP models, installation blueprints, and fleet pricing.
