When the issue involves towing a heavy load, not every winch is equal to the task. A 20,000 lb hydraulic winch is meant to endure hard use and heavy machinery. But is it right for your equipment?
The wrong winch equates to throwing cash down the drain, slower work, and safety risks. The correct one, however, gives you power, control, and reliability when you most need it. Let us explore why a 20,000 lb hydraulic winch stands above the rest—and whether or not it’s the ideal fit for your heavy-duty task.
Understanding Winch Capacity Ratings
So what does a “20,000 lb winch” mean? It’s the maximum pulling force the winch can apply under ideal conditions. It is the highest rating of the winch, not its average working load.
Static vs. Dynamic Load
- Static load: The amount of force necessary to pull or hold something stationary.
- Dynamic load: The added force created when there is movement, shock, or rough terrain.
Dynamic loads are larger, and therefore your winch needs to be heavier-duty to support them.
Safety Factors
Winches do not have to be run to full capacity every day. A 1.5:1 to 2:1 safety factor depending on the weight of your gear is a good rule of thumb.
Here’s a quick guide:
| Equipment Weight | Recommended Winch Capacity (with 1.5x–2x factor) |
| 10,000 lbs | 15,000–20,000 lbs |
| 15,000 lbs | 22,500–30,000 lbs |
| 20,000 lbs | 30,000–40,000 lbs |
In doing so, your winch functions safely, lasts longer, and resists sudden stress without failing.
Typical Applications for a 20,000 lb Hydraulic Winch
There is a 20,000 lb hydraulic winch for heavy use. It gives good pulling capacity and steady performance. Given the right drum, rope, and fairleads, it functions well even in bad conditions. These winches are made with strength and endurance to be used for a long time. They can withstand continuous stress without breaking down.

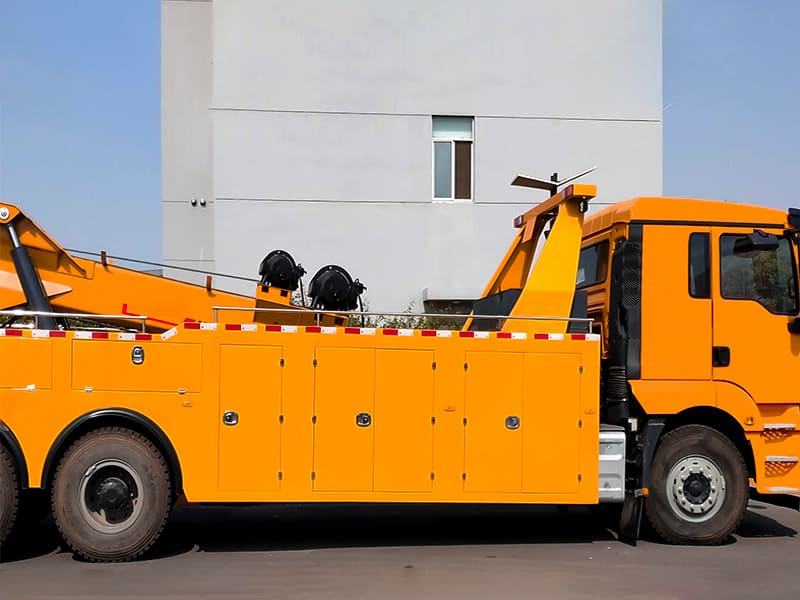

Recovery and Tow Trucks
They are widely used for heavy tow trucks. A 20,000 lb winch can recover big cars stuck, overturned, or badly damaged. Consistent power from the hydraulic system while pulling ensures safe and smooth operation. It minimizes damage risk to the tow truck and vehicle. Operators like these winches because they stabilize and secure the load while recovering. If you are new to safe use, here is a simple guide to winch safety that explains the basics.
Skidder and Forestry Work
In logging, the winches are used with skidders to haul logs out of the woods. The rope and winch drum endure heavy weight and tough conditions. Large timber is hauled effortlessly with a 20,000 lb winch. The strength and durability make it a must-have for logging crews. It is relied on by crews because it will keep working in mud, rain, and rough ground. Without a heavy-duty winch, this job would not only be slow but also dangerous.
Construction and Industrial Sites
Construction labor also depends on hydraulic winches. They are mounted on bulldozers, excavators, and cranes. The winch helps pull heavy equipment, transport materials, and secure loads. It has a capacity for extreme weight with 20,000 lbs. Safety is one of the primary reasons builders use hydraulic winches. Hydraulic systems function for long hours on industrial sites without heat exhaustion. That makes it a perfect nonstop work tool.
Oil, Gas, and Mining
The mining, oil, and gas industries need high and steady power. A 20,000 lb winch runs in these environments without a loss of power. It can withstand long pulls and hard pressure. These are stressful environments with heat, dust, and constant use. Hydraulic winches do not slow down in these environments. To the operators, the winch is more than an implement. It is a line that keeps the work going. It allows teams to work safely and productively under harsh conditions.
Is 20,000 lb the Right Size for Your Equipment?
Choosing the right winch size is not guessing. It is a factor of your machine’s weight, its purpose, and the power system powering it. A 20,000 lb winch is heavy-duty, but it must fit the equipment and the use.
Determining the Right Winch Size for Your Machine
The winch capacity should be the same as your machine’s vehicle weight. It is a rule of thumb to choose a winch with a 1.5- to 2-times gross machine weight rating. For example, a bulldozer weighing 13,000 lbs needs a capacity of almost 20,000 lbs. This provides safe and consistent pulling power without subjecting the drum or line to tension.
Overkill vs Underpowered Risks
Going too big has drawbacks. A winch that is too large will put more load on the machine, will be more expensive, and draw more power. But too small of winch is more terrible. It will burn up, will crack with tension, and put in danger the operator and machine. Balance is the key. Proper size gives safety, consistency, and long-term quality.
Hydraulic System Requirements
A hydraulic winch will be relying on the control system of the machine. That is to say that your system must be able to offer the required flow rate and pressure. Most 20,000 lb winches need 15–25 GPM at 2,500–3,000 PSI. The winch won’t perform as expected if the system won’t support it. Always refer to your machine’s specs before making a selection.

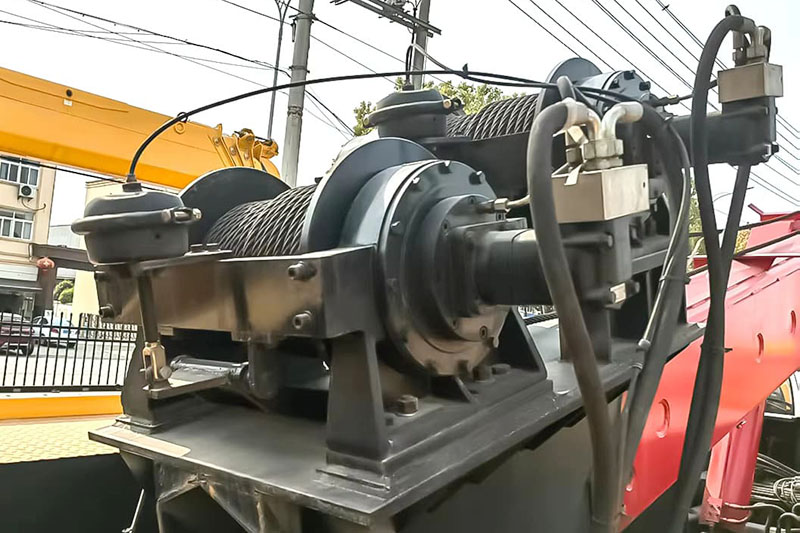

Key Features to Look for in a 20,000 lb Hydraulic Winch
Choosing the right winch is not only about pulling weight. It’s about safety, smoothness, and sustained performance. A quality unit can save time when operating, keep repairs low, and get machines moving when stuck on rocky terrain.
A planetary gear drive is the most common design. It is a compromise of speed, weight, and strength. A worm gear drive is slower and offers more control. Planetary gears are preferred by Jeep owners for faster operation, but heavy machinery hoists will employ worm gears.
Automatic brake systems are compulsory when it comes to safety. They provide rollback prevention when the operation is stopped. Without proper brakes, there is a heightened risk of failure and damage. It is an elemental but important feature that makes equipment meet safety standards.
Spooling direction and line speed also matter. Even layers of cable are preserved and wear is reduced by smooth working. Rescue operations are helped by high speed in line, like pulling a jeep or moving stuck equipment. Slowing down is given with heavy pounds lifted with no hazard.
Fairlead compatibility is also important. A suitable roller fairlead reduces rope friction. It supports the steel cable or synthetic line in place during operation. This reduces the risk of frays and cuts, reducing maintenance over the service life.
Drum capacity must be the same as cable model being used. Take into account rope diameter and length. Too small a drum and fewer line layers can be accommodated, shortening reach. Too large a drum and weight of excess rope places undue stress on the unit. For example, some 20,000 lb winches can utilize long 2/3–8 inch ropes, while others use short ones.
Don’t forget the accessories that assist in smooth operation. Healthy solenoids, tough hooks, and adequate mounting hardware all play a part in how well the winch functions. Poorer quality parts are likely to break down on a tough job.
The right model must also be maintainable. When parts can be replaced quickly, downtime is minimized. That means less waiting per hour and faster return to productivity.
For further advice on how to purchase the right winch for your budget and purchased needs, see this group of affordable winches.
For more guidance on finding the right winch that fits your budget and purchased needs, check out this list of cost-effective winches.
Alternatives: When to Go Bigger or Smaller
Bigger isn’t always better. Sometimes 20,000 lb just isn’t enough. Depending on your gear and where you are located, sometimes you’ll need more or sometimes you’ll need less pulling power. Picking the right option avoids wasted cost, safety compromise, or equipment damage.
When to Look at 30,000 lb+ Winches
Heavy usage calls for more heavy-duty winches. You may need to use 30,000 lb or more if you do off-road recovery in tough ground conditions. These are also on multi-purpose industrial trucks with huge weights to handle on a daily level. Winches for bigger sizes are costly, but they have the power and structure for ruthless operations. For further options, see this guide on heavy-duty winches for trucks and boats.
When a 12,000–15,000 lb Winch Could Be Just Right
Not every job needs the biggest pulling capacity. A middle-sized excavator may only need a 12,000–15,000 lb winch. Light-duty trucks or trailers can also do fine with the lower size. Choosing a lighter winch is lighter and cheaper, but still safe and secure if well-matched to the vehicle.
FAQs
What size hydraulic winch do I need for a 15,000 lb bulldozer?
You’ll need around a 20,000 lb winch. Simply apply the rule of 1.5x to 2x machine weight. That’s safety and security in heavy pulls.
Can a 20,000 lb winch be used for vertical lifting?
No. Hydraulic and electric winches are designed for pulling, not for vertical lifts. Operating them for vertical lifts can prevent safe operation and doesn’t follow proper usage.
How much hydraulic pressure is required?
Most 20,000 lb winches require around 2,500–3,000 PSI and 15–25 GPM flow. It is crucial to inspect your machine’s supply system to verify it can accommodate the load.
Can I install a 20,000 lb winch on a skid steer or loader?
Yes, as long as the skid steer or loader has enough hydraulic capacity. But it must be to the manufacturer’s specifications. Correct installation provides long-term meaning and safe operation.
Is a planetary or worm gear better for my application?
Planetary gears are fast and common in warn and other heavy-duty winches. Worm gears spin slowly but ensure safety and control. Choose based on your process and pulling needs.
Conclusion: Is 20,000 lb the Sweet Spot?
A 20,000 lb winch is heavy-duty and dependable. It is suitable for most heavy-duty equipment. For forestry, construction, and recovery use, this size is easy to handle most tasks. It has a lot of pulling capacity without being too big or wasteful.
That said, the right winch size depends on your machine and usage. Always check your equipment specs before buying. If unsure, refer to a size chart or a pro.
Ready to find the perfect fit? Explore Zhihe Hydraulic Winches and get the power and reliability your projects demand.
