Understanding Winches: Parts, Motors, and How Winching Works

Introduction

Winches have a wide range of pulling and lifting applications across various industries. Anchoring vessels, vehicle recovery, and off-road navigation – winches show impressive versatility.

Its material handling and heavy lifting ensure safe operation in demanding environments. Adaptability turns a winch into a valuable tool in professional and recreational settings. Understanding parts, motors, and mechanisms is essential to get the most out of the tool.

This article simplifies the winching mechanism with a particular focus on the motor. You’ll also discover different key components of a well-functioning winch system.

What is a Winch?

It’s a robust mechanical device to wind in/out a cable, rope, or wire. Thus, a winch enables the pulling, lifting, or tensioning of heavy loads. The device operates using a simple yet effective mechanism.

The cable or rope gets spooled around a drum or reel powered by a motor or manual crank. Winches are well-suited for generating controlled force across everyday industrial and recreational contexts.

Applications of Winches

• Vehicle Recovery: Winches are frequently used for vehicle recovery. You can pull a stranded vehicle out of mud, sand, or water. They’re primarily mounted on trucks, SUVs, or specialized recovery vehicles.

• Construction: Winches can lift and position heavy steel beams, concrete blocks, or machinery. They can handle substantial loads with precision. It ensures safety and efficiency in building and infrastructure tasks.

• Marine Operations: Winches help anchor vessels, tow boats, or manage cargoes. They seem like integral mechanisms to many ships and boats. You can hoist fishing nets, pull mooring lines, and ensure secure docking.

• Industrial Applications: Winches can manage large equipment and materials in warehouse facilities. This makes them invaluable in industrial product management and transportation.

How Winching Works?

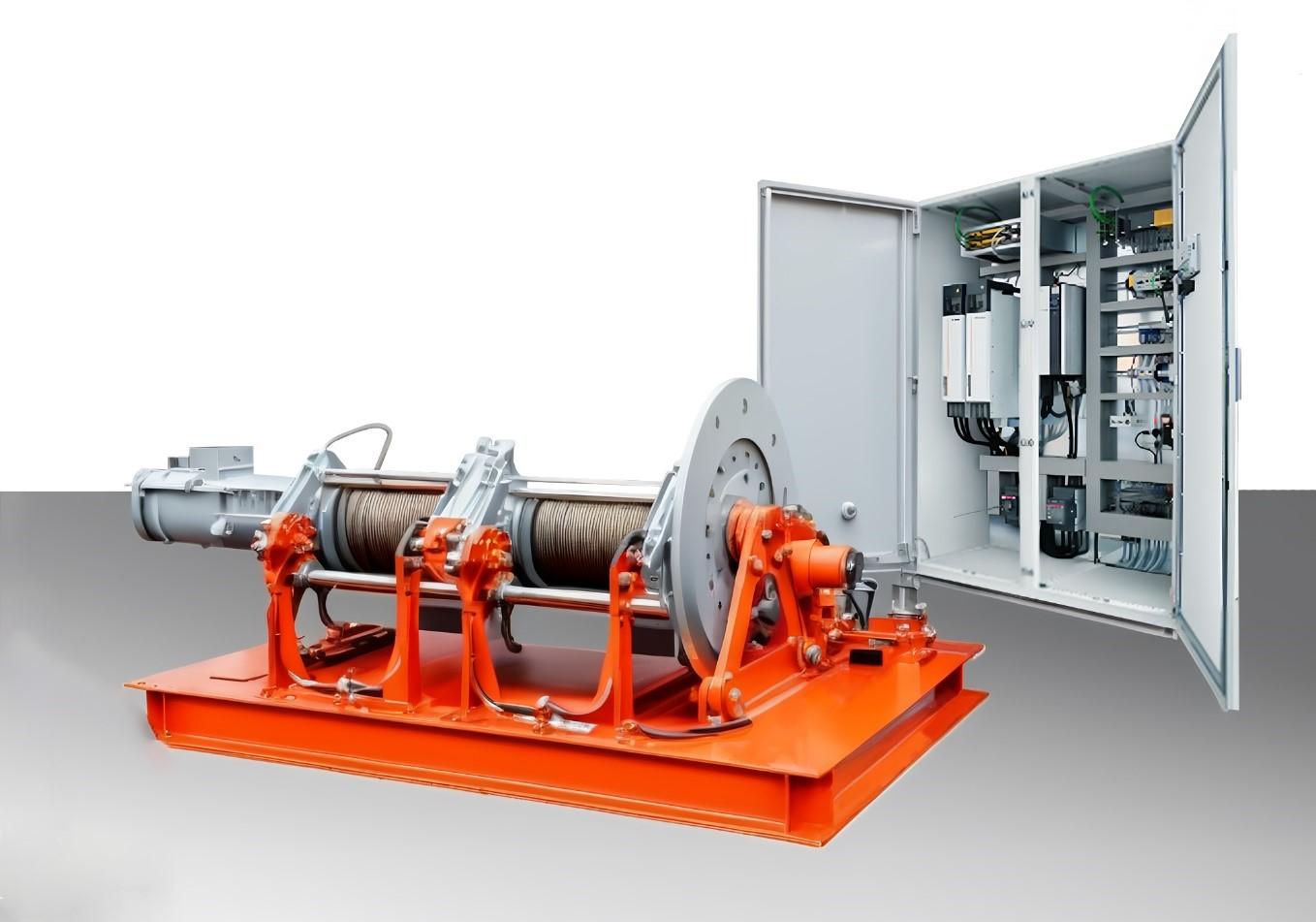

A cylindrical drum lies at the core of a functional winch system. A cable, rope, or wire is wound around the drum. The drum remains connected to a motor, which delivers the force to spool the cable.

The motor ultimately drives the drum for precise control over the load movements. Advanced winches may include gear systems or brake mechanisms to enhance performance.

It begins with anchoring the winch to keep the system stable during operation. The cable or rope is attached to the load or anchor point. And tension gets applied as the motor powers the drum.

Parts of a Winch

1. Winch Motor: It acts as the powerhouse of the winch. The motor provides the force to wind or unwind the cable or rope around the drum. The motor type determines the performance and suitability.
2. Electric Motor – It’s powered by electricity for lighter-duty tasks. Electrical motors are commonly used in automotive applications, such as vehicle recovery. Such motors are efficient and operable but may need access to a power source or battery.

2. Hydraulic Motor – Hydraulic motors are driven by pressurized fluid. They offer greater power and torque than electric motors. It suits heavy-duty applications, such as lifting materials or handling large cargo. Such motors are capable of continuous operation for demanding tasks.

2. Winch Drum: The cylindrical component around which the cable/rope is wound. It serves as the central hub for winching. It stores the cable and controls how much is wound or pulled out. The drum’s size and material are the primary determinants of the winch’s capacity.

3. Gearbox: It plays a pivotal role in controlling the winch speed and torque. A gearbox regulates the motor power. Thus, it ensures the winch operates efficiently and safely under different load conditions. A gearbox with appropriate gear ratios initiates precise control.

4. Brake: The critical safety feature prevents the winch from unwinding under load. The cable remains secure when the motor is not active. It’s imperative during lifting or towing tasks. No uncontrolled movement can lead to accidents or damage.

5. Controller: It allows the operator to control winching through speed and direction. Controllers can be manual, electric, or remotely controlled. It depends on the design and intended uses. Remote-controlled systems offer added convenience and safety through distant control.

6. Drum Clutch: A mechanical component engages or disengages the winch drum. When disengaged, the drum can spin freely, allowing the cable to be pulled out manually. Engaging the clutch connects the drum to the motor, enabling powered operation.

7. Fairlead: The fairlead is another accessory that pushes the winching action. It guides the cable or rope onto the winch drum. Thus, uniform spooling occurs with minimal wear on the cable. Fairleads can be roller-based or fixed plates, depending on the winch type.

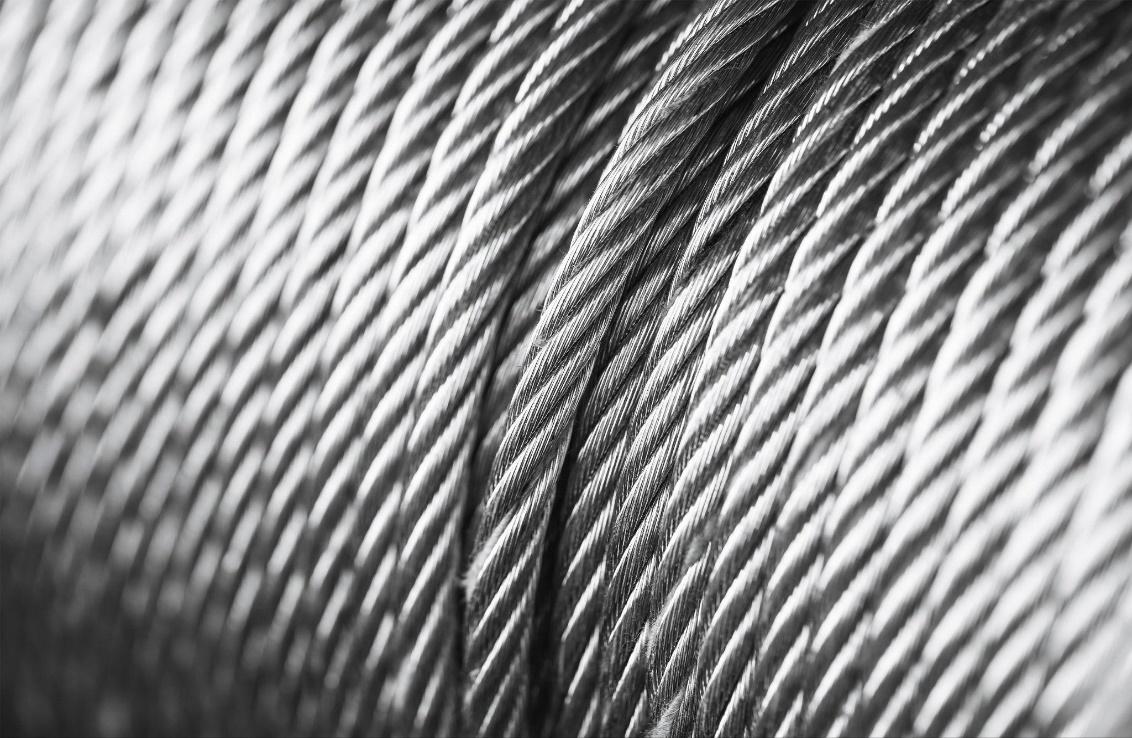

8. Cable or Rope: It’s the ultimate load-bearing element of the winch. There are steel cables and synthetic ropes, each with certain advantages. Steel cables are durable and resistant to abrasion. Meanwhile, synthetic ropes are lightweight, flexible, and safe to handle.

Winch Motors: Electric vs Hydraulic

Investing in the best winch motor is mandatory. Electric and hydraulic ones are preferred for most tasks. Understanding the differences between the two can lead to an informed decision.

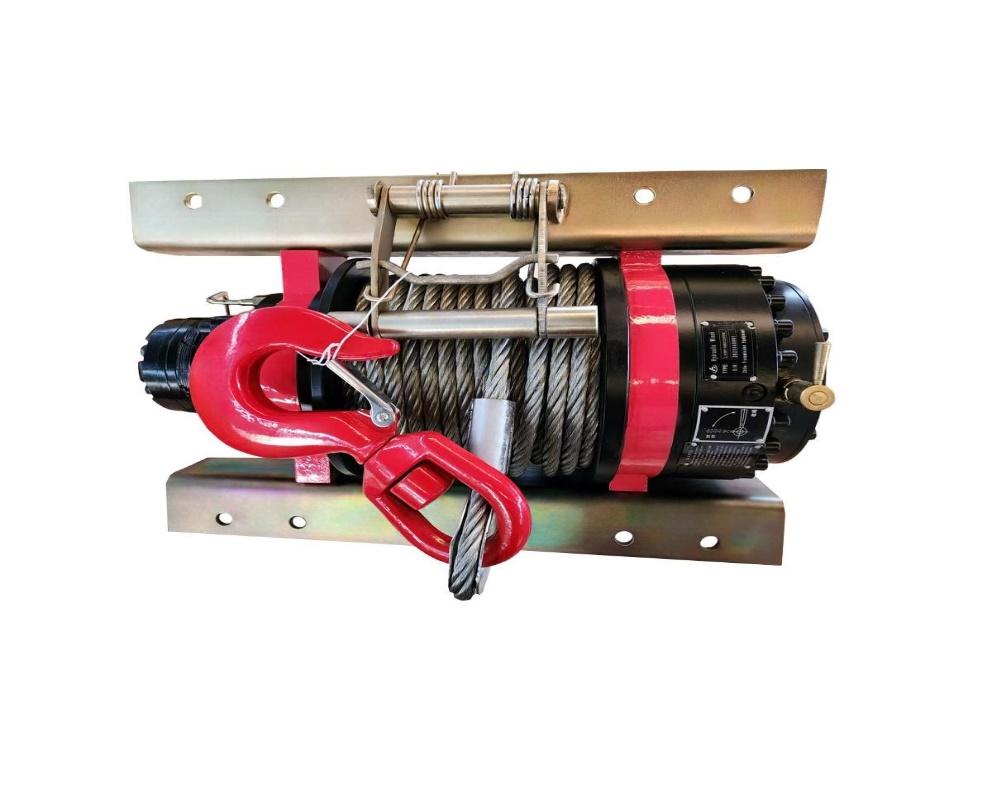

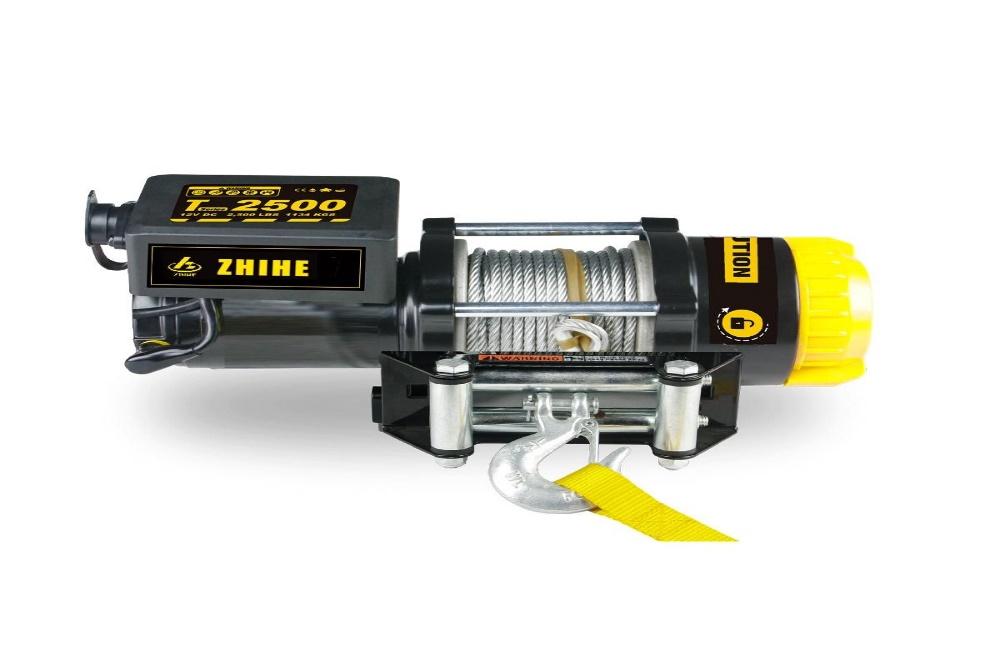

1. Electric Winch Motor

It runs through electrical power from a vehicle battery or an external power supply. The motor converts the electrical energy into mechanical force. The force drives the winch drum to wind or unwind the cable. Its design prioritizes simplicity and usability for high accessibility.

Electric Motor Applications

• Off-roading and Vehicle Recovery: They are a go-to for off-roading tasks.
• Boat Lifting: Electric motors can manage small watercraft or anchoring systems.
• DIY or Hobbyist: Low-end models are ideal for homeowners or hobbyists.

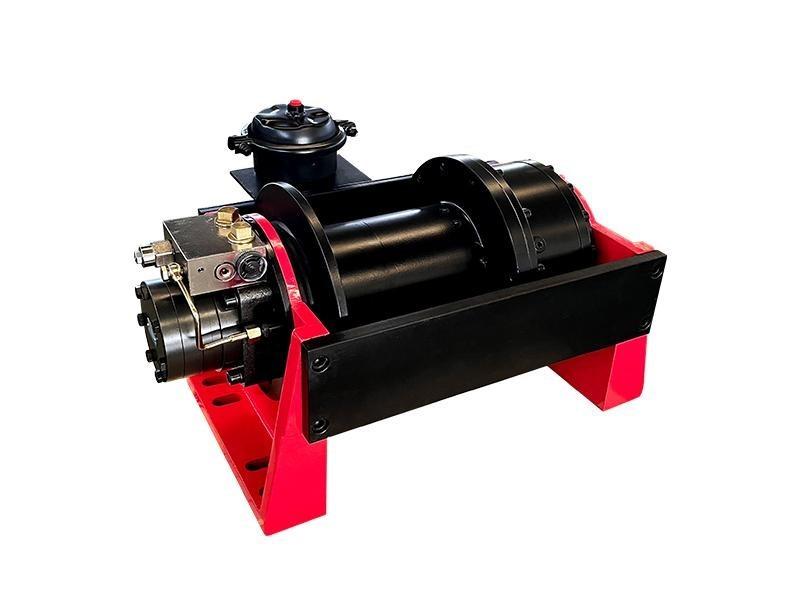

2. Hydraulic Winch Motor

It’s powered by pressurized hydraulic fluid supplied by a hydraulic pump. The pressurized fluid transfers energy to the motor. It generates a higher torque output to turn the winch drum. Hydraulic systems are designed for continuous operation without overheating.

Hydraulic Winch Applications

• Construction Sites: Powerful models can easily lift and position heavy materials or machinery.
• Marine Operations: Large ships rely on these for anchoring, towing, or handling cargo.
• Large Off-Road Trucks: Specially designed ones can handle some extreme recovery tasks.

Comparison Table: Electric vs Hydraulic Motors

Feature	Electric Motor	Hydraulic Motor
Power Source	Battery or power supply	Hydraulic pump
Performance	Light to medium loads	Heavy-duty applications
Ease of Installation	Simple	Complex
Portability	Lightweight and portable	Less portable
Operational Duration	Limited operability	Continuous operation
Cost	More affordable	Higher cost
Maintenance	Simple	More labor-intensive

Your choice ultimately depends on the intended uses. Electric motors are ideal for casual users or light-duty tasks. Hydraulic motors are better suited for heavy-duty applications.

Choosing the Right Winch Motor

Only the right winch motor delivers optimal pulling, lifting, or towing efficiency. Several factors need careful consideration to make the decision. The must-consider factors include –

• Load Capacity: It refers to the maximum weight a motor can safely pull or lift. An electric motor seems enough for light loads like small vehicles or equipment under 5K lbs.

Machinery or vessels weighing over 10,000 pounds require a hydraulic motor for safe use. Always select a winch motor with a capacity greater than the optimal weight limit.

• Power Source: The availability and compatibility of the power source determine the motor. Get an electric one for applications like off-road recovery or small marine tasks.

You’ll need a hydraulic one for construction, industrial, or large-scale operations. The choice depends on whether your site or vehicle is equipped for the intended system.

• Environment: The operating conditions impact the selection, as certain conditions require special features. Stainless steel or corrosion-resistant coatings are essential for marine settings.

Motors in construction must handle heavy loads, dust, and continuous operation. Off-roading demands compact and portable motors to manage vehicle recovery in uneven terrains.

• Speed and Torque: They decide on the motor performance in your intended application. Faster speeds are crucial for vehicle recovery, as they help pull vehicles out of mud, sand, or snow.

Electric motors generally offer higher speeds, making them ideal for such scenarios. Higher torques from hydraulics lift heavy objects or pull loads involving substantial force.

• Budget: Electric motors are more affordable for casual users or light-duty tasks. Hydraulic motors, with high upfront costs, offer unmatched durability for professional applications.

Yet, some advanced electric motors may cost more than standard hydraulic motors. They’re well-equipped to handle massive loads across large-scale industrial settings.

Frequently Asked Questions (FAQs)

1. Can I use an electric motor for heavy-duty winching?

Electric motors are designed for light to medium-duty tasks. They may struggle with heavier winching. You can find exclusive models for heavy-duty applications at a higher price.

2. How do I maintain a winch motor?

Regularly inspect the electrical connections for corrosion or loose wiring. Clean the housing to remove dirt and debris. Also, check the battery or power supply.

Alternatively, check hydraulic fluid levels and quality for refills or replacements. Inspect hoses for leaks and ensure smooth fluid flow. Clean the motor and pump system to prevent blockages.

3. What’s the difference between a winch motor and a winch gearbox?

The winch motor is the source of power to drive the winch. Meanwhile, the gearbox regulates how the power is applied to the drum. The winch motor comes in different types, including electric and hydraulic.

The gearbox primarily adjusts the speed and torque to handle diverse loads. It includes gear ratios that ensure the winch operates efficiently under different conditions.

Conclusion

Winches combine engineering precision with practical functionality. The motor, drum, and gearbox form the backbone for seamless and continuous operations. The cable/rope and the fairlead are standard, enabling smooth and secure winching.
