In the world of heavy-duty lifting and recovery, the heart of any high-performance system is its transmission. Whether you are operating a wrecker, a truck crane, or an aerial work platform, the ability to move massive loads with precision and safety is non-negotiable. This is where the hydraulic planetary winch comes into play.
As a leading hydraulic planetary winch manufacturer, ZHIHE understands that choosing the right drive system is the difference between operational success and costly downtime. In this guide, we will explore the mechanics, advantages, and technical considerations of planetary drives to help you make an informed decision for your next project.
How Does a Planetary Winch Work?
To appreciate the power of these machines, one must first ask: how does a planetary winch work? Unlike traditional direct-drive systems, a planetary winch utilizes a unique arrangement of gears that resemble a solar system.
At the center sits the “Sun Gear,” which is driven by the hydraulic motor. Surrounding it are multiple “Planet Gears,” held together by a “Planet Carrier,” all encased within an outer “Ring Gear.” When the sun gear turns, it drives the planet gears, which “walk” around the inside of the ring gear.
For heavy-duty applications, a single stage is often not enough. A 3 stage planetary gearbox winch connects three of these sets in series. This cascading arrangement allows for a massive reduction in speed and a monumental increase in torque, enabling a compact motor to pull loads exceeding winch 100,000 lb planetary specifications.
Planetary vs. Worm Gear Winch: The Engineering Showdown
When sourcing equipment, engineers often debate the merits of planetary vs worm gear winch designs. While both have their place, the winch worm vs planetary comparison usually ends in favor of planetary drives for industrial B2B applications for several reasons:
- Mechanical Efficiency: A planetary gear winch typically operates at 90%–95% efficiency. In contrast, worm gears lose significant energy to friction, often operating at only 50%–70% efficiency.
- Heat Dissipation: Because planetary gears share the load across multiple contact points (the planet gears), they generate less heat. This makes them ideal for continuous-duty cycles in hydraulic lifting.
- Compact Power Density: A winch drive planetary gear set provides much higher torque in a smaller footprint compared to a worm gear of the same rating.
Technical Deep Dive: Calculating Gear Ratios
For technical buyers, understanding how to calculate planetary gear ratio in winch systems is vital for matching the winch to the hydraulic motor’s output. The basic formula for a single-stage planetary gear set (where the ring gear is stationary) is:
$$Ratio = \frac{Teeth_{Ring} + Teeth_{Sun}}{Teeth_{Sun}}$$
In a 3 stage planetary gearbox winch, the total ratio is the product of each individual stage. For example, if each stage has a 5:1 reduction, the total reduction is $5 \times 5 \times 5 = 125:1$. This high ratio is what allows for the safe and precise lifting operations required in construction and recovery.
Why Quality Materials Matter in Planetary Winch Drives
The reliability of planetary winch drives depends heavily on the metallurgy. While some manufacturers use standard 42CrMo, premium industrial suppliers like ZHIHE utilize 20CrMnTi for the internal gear sets. This material, combined with precise heat treatment, ensures that the winch drive planetary gearbox can withstand the shock loads common in field operations.
Furthermore, the choice of winch planetary gear grease is critical. High-pressure synthetic lubricants ensure that the gear teeth remain protected even under the extreme pressures of a 50-ton pull, preventing premature wear and galling.
Applications of Hydraulic Planetary Winches
The versatility of the planetary hydraulic winch makes it the standard for several demanding industries:
- Mobile Cranes & Hoists: Utilizing hydraulic planetary lifting winch 250fpm (feet per minute) configurations for fast yet controlled vertical movement.
- Heavy Recovery Vehicles: Where a winch 100,000 lb planetary drive is required to pull overturned tractor-trailers.

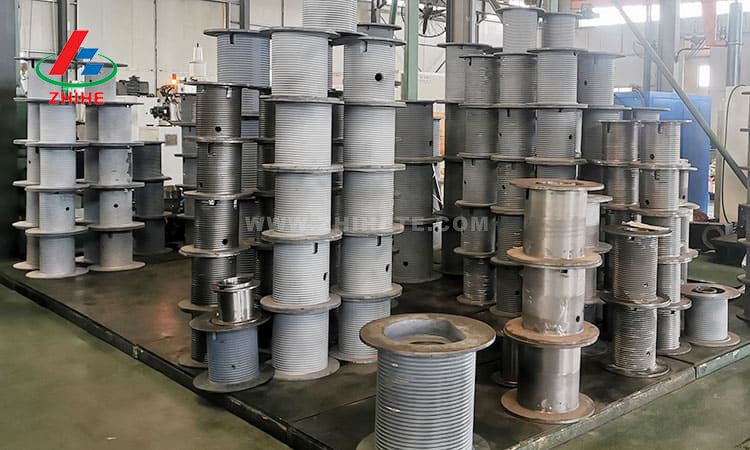

- Industrial Winch Mounts: Used in mining and marine environments where the planetary winch drum must resist corrosion and constant tension.
Key Selection Criteria for B2B Buyers
When searching for hydraulic planetary winches for sale, do not just look at the price tag. Consider these technical factors:
- Duty Cycle: Is the gearbox rated for continuous or intermittent use?
- Mounting Compatibility: Does the winch drive planetary gear box match your existing hydraulic motor flange?
- Manufacturer Reputation: Work with hydraulic planetary winch manufacturers who provide full technical support and spare parts availability.
The ZHIHE Advantage
At ZHIHE, we specialize in the engineering and production of planetary gearboxes for winches. Our products are designed to replace and outperform standard market options by focusing on:
- Precision Machining: Ensuring minimal backlash for smoother operation.
- Integrated Solutions: Providing the full winch drive planetary gear set and housing for easy installation.
- B2B Focused Support: We understand the needs of integrated manufacturing and trading companies.
Conclusion
The hydraulic planetary winch remains the gold standard for heavy-duty industrial applications. By offering superior efficiency, a compact design, and incredible torque multiplication through 3 stage planetary gearbox technology, it ensures that your lifting operations are both productive and safe.
Whether you are calculating the planetary gear ratio for a new crane design or looking to upgrade your fleet’s recovery capabilities, choosing a high-quality planetary drive is an investment in your company’s operational future.
