Introduction to Hydraulic Winches
Hydraulic winches are recognized for their heavy-duty reliable operations worldwide. This is where electric systems often fall short. Industries that demand reliable lifting and pulling, hydraulic winches are the best choice.
The 50-ton hydraulic winch is the practical choice for construction and mining industries. It provides enough pulling power to move drilling pipes, concrete structures. At the same time, it avoids the bulk, cost, and maintenance issues of oversized winches.
Why 50 Tons?
- It’s a balanced capacity
- It fits many real-world safety margins.
- It offers versatility across sectors
Key Features of a 50-Ton Hydraulic Winch
Heavy Lifting Power: What Makes 50 Ton Special
- A 50-ton (≈ 100,000 lb) rated hydraulic winch resides in the “industrial heavy” class. It is stronger than midrange units (e.g., 30-ton). It is more practical compared to ultra-heavy (100-ton+) systems in most applications.
- A 50-ton hydraulic unit uses multi-stage planetary gearboxes (ratios often 20:1 to 50:1 or more). It convert motor torque into massive drum force under load.
- Hydraulics deliver full torque even at zero drum speed. he need for initial “ramp-up” or clutch slipping is no longer required. This gives superior control over heavy loads when inching or aligning large components.
- Engineers size winches with a 1.25× to 1.5× buffer over the expected peak load to handle shock..
- 50-ton hydraulic winch maintain performance under load for extended periods without degrading output. It keeps the hydraulic supply (flow, pressure, cooling) identical.
Hydraulic vs. Electric Winches: Why Hydraulic Wins in Heavy Duty?
Hydraulic systems offer higher torque density per volume and weight. It makes them better suited for rugged installations. Hydraulic systems offer higher torque density per volume and weight. It makes them better suited for rugged installations. Electric winches gain in niche areas where power availability, noise, or simplicity dominate. So, a 50-ton hydraulics class heavy lifting outweighs the downsides.
View the table below for a better understanding:
| Feature | Hydraulic Winches | Electric Winches |
| Torque per Size | High, scalable via fluid pressure and gearing | Limited by motor size and heat dissipation |
| Continuous Duty | Better: hydraulic systems tolerate long continuous operation if cooled | Electric motors overheat under prolonged heavy loads |
| Control Precision | Smooth modulation via proportional valves; instant reversal possible | Variable-frequency drives (VFD) offer some control but less fluid-like responsiveness |
| Power Source Integration | Can tap into central hydraulic systems or pump banks | Requires dedicated electrical power; may require heavy cabling |
| Noise & Leaks | More components and potential leak points, but quieter under load if well-designed | Quieter in general, no fluid leakage risk |
| Maintenance | Needs fluid filtration, hose inspection, valve checks | Simpler: motor, gearboxes, electrical insulation checks |
| Reliability in Harsh Environments | Better suited for dusty, wet, corrosive sites due to sealed systems | Electric components may be more vulnerable to environmental damage |
Top 5 50-Ton Hydraulic Winches for Heavy Lifting (With Industry Benchmarks)
Here are the five best 50-ton class hydraulic winches worth reviewing.
Winch #1: ZHIHE 50-Ton Series
- Key features & specs: Designed with a heavy-duty planetary reducer. Includes multi-disc wet brake, sealed bearings, and optional anti-corrosion coating for outdoor use.
- Pros: Seamless integration with your own manufacturing line. Provide customization flexibility. Have strong spare parts and rebuild support.
- Cons: Price may vary. Bespoke units usually have longer lead times.
- Ideal applications: Construction cranes, high-capacity recovery trucks, industrial lifting systems.
- Price range (estimated): USD 15,000 – 30,000
Winch #2: 50-Ton Worm-Gear Hydraulic Winch
- Key features & specs: First-layer pull ≈100,000 lb, worm-gear primary with band/aux brake. ~200 ft drum capacity with standard wire (typical).
- Pros: Excellent self-locking and static holding; predictable controlled payout; mature service ecosystem.
- Cons: Slower line speeds and heavier package vs. planetary designs.
- Ideal applications: Heavy recovery, rigging, construction where holding torque is critical.
- Price range (estimated): USD 12,000 – 25,000 (configuration dependent).
Winch #3: 50-Ton Worm-Gear Hydraulic Winch
- Key features & specs: ≈100,000-lb class. Many hydraulic motor options and mechanical/air clutch variants; robust oil paths.
- Pros: Proven in oilfield service; broad parts availability; clear sizing tables common.
- Cons: Worm-gear efficiency tradeoff; higher installed weight.
- Ideal applications: Service rigs, drilling support vehicles, demanding pulling tasks.
- Price range (estimated): USD 25,000 – 40,000 (motor/clutch/spec options).
Winch #4: 50-Ton Planetary Hydraulic Winch
- Key features & specs: High-efficiency planetary drive; spring-applied, hydraulically released wet brake; compact envelope.
- Pros: Higher line speed at comparable flow. Strong torque-to-weight; good for continuous duty with cooling.
- Cons: Requires robust brake and valve block for equivalent static holding.
- Ideal applications: Pipeline spreads, utility cranes, mid-speed lifting/positioning.
- Price range (estimated): USD 14,000 – 28,000 (options, duty, controls).
Winch #5: Marine/Offshore 500 kN
- Key features & specs: Marine-grade build; sealed drums. Anti-corrosion coatings. Class certification options (ABS/CCS/BV).
- Pros: Harsh-environment durability; modular; certification pathway available.
- Cons: Higher unit cost; integration required with marine hydraulic and control systems.
- Ideal applications: Dredging, deck operations, offshore lifting tasks.
- Price range (estimated): USD 20,000 – 45,000 (certs, materials, controls, HPU scope).

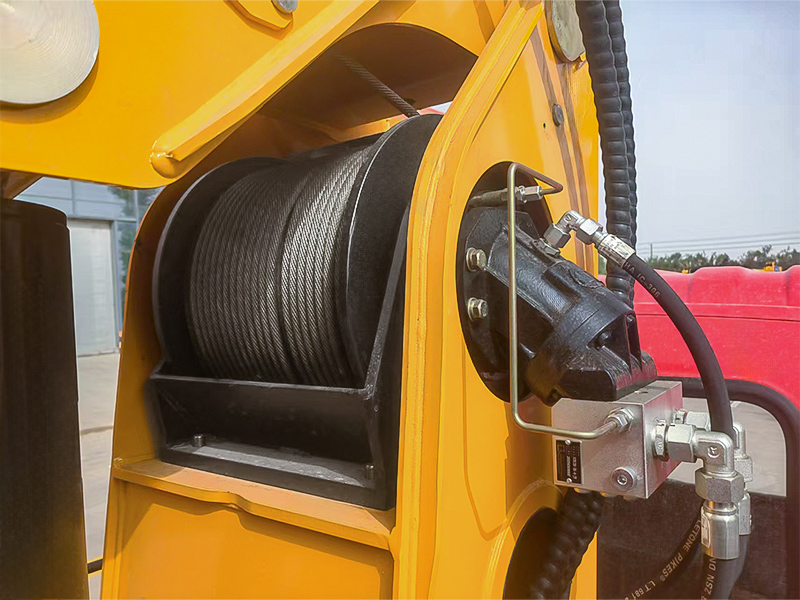

Applications of 50-Ton Hydraulic Winches in Industry
Construction and Mining
A 50-ton hydraulic winch lifts and positions heavy steel. Uses for precast modules, crushers, and conveyor components. It provides slow, controlled movement for alignment and bolting. Low-speed, high-torque output prevents shock loads on rigging and structure. In mining yards, it skids mill shells, drags frames onto foundations.
Oil & Gas (Onshore/Offshore)
On rigs and platforms, 50-ton hydraulic winches work as tugger and utility winches. They handle BHA components, riser joints, Xmas trees, and topside modules. They also tension guy lines, pull umbilicals, and assist with mooring spread adjustments. Offshore AHTS and deck winch systems in this class prioritize sealed gearboxes.
Logistics and Shipping
In ports and yards, 50-ton winches spot heavy containers. It also assist roll-on/roll-off moves. On barges and railcars, winches secure over-dimensional loads and tension lashings for sea-fastening. For over-the-road securement, dedicated lashing winches and tensioning hardware complement the main puller.
Factors to Consider When Choosing the Right 50-Ton Hydraulic Winch
Required Lifting Capacity
A 50-ton winch is not always the automatic choice. Engineers calculate rated line pull vs. working load to size equipment correctly.
- Load requirement: Identify maximum static weight and possible dynamic factors (wind, slope, vibration).
- Overcapacity: Best practice is selecting a winch rated 25–50% higher than the expected. This ensures safety margin and prevents overheating.
- Duty cycle: Continuous operations require derating to avoid thermal buildup. For intermittent lifts, closer to rated pull is acceptable.
- Rope diameter, drum layer count, and line speed directly affect real-world performance. Always check first-layer capacity, not just catalog figures.
Vehicle or Equipment Compatibility
Even the strongest winch fails if it cannot integrate with the carrier system.
- Confirm pump flow (L/min) and system pressure (bar/psi) match the winch motor’s requirements.
- Frames, pedestals, and base plates must align with the host vehicle or crane structure. Welding and bolt patterns should follow OEM or API/ISO standards.
- Ensure enough clearance for rope buildup, operator access, and safe payout angles.
- Long duty cycles may need dedicated return lines, filters, or oil coolers. Integration with truck or crane reservoirs should avoid cavitation.
- Control system: Decide between manual valve blocks, pilot controls, or electro-hydraulic remotes. Compatibility improves efficiency and operator safety.
Installation and Maintenance
Installation Considerations
- Use a rigid base plate and shim surfaces to maintain < 0.1 mm misalignment tolerance
- Use high-grade (e.g. 10.9 or 12.9) bolts torqued in star pattern; torque specs often ~120–180 N·m for M24 class bolts (check OEM).
- Hydraulic plumbing: Supply and return lines sized to avoid pressure drop < 5% at full flow. Use 37° flared or ORFS fittings rated > operating pressure.
- After installation, purge air from lines via meter-out loops or purge ports. Run at low speed under no load to purge before loading.
- Wire or hose control manifolds close to operator station. Pilot or solenoid lines should be < 3 m if possible to reduce lag.
- If duty is high, integrate filters (10 µm or better) and cooling (heat exchanger) in the loop.
Maintenance Tips for Longevity
- Fluid checks: Monitor viscosity, contamination, and particle counts. Replace fluid when ISO cleanliness exceeds 19/16 or ≥ 1000 ppm ferrous wear particles.
- Change suction & return filters regularly (e.g. every 500 hours or earlier if pressure drop > 0.5 bar).
- Hose & fitting inspection: Inspect daily for blistering, abrasion, pinholes. Replace faulty hoses immediately.
- Brake & clutch service: Inspect disc packs and replace if wear >15%. Clean debris and verify spring preload.
- Rope/cable inspection: Check for broken wires, kinking, wear zone on drums & fairleads. Replace rope when >10% of wires show failure over length.
- Inspect bearing temps (< 60 °C) and verify seal integrity. Relubricate or reseal as required.
Frequently Asked Questions
How much does a 50-ton hydraulic winch cost?
A standard 50-ton industrial winch costs between USD 15,000–40,000. Custom offshore models with class approval can exceed this range.
Can I install a 50-ton hydraulic winch myself?
Not recommended. Precision alignment, hydraulic plumbing, and brake testing require trained technicians. DIY risks misalignment, leaks, and unsafe operation. Always use professional installation for units above 20 t.
What is the lifespan of a 50-ton hydraulic winch?
With proper maintenance clean hydraulic fluid, a heavy-duty winch can last 10–20 years. Marine and mining units may need rebuilds sooner due to corrosion and abrasion.
How do I calculate the pulling power I need for my winch?
Take your expected load, multiply by 1.25–1.5, and match against the winch’s first-layer rated line pull.
Conclusion
A 50-ton hydraulic winch offers the balance between brute strength and practical integration. It delivers smooth torque, continuous duty, and long-term durability.
The key is correct sizing. Evaluate your load requirements, equipment compatibility, and budget before investing. Choose a design that matches your duty cycle, environment, and safety standards.
Companies that handle frequent heavy lifts, a 50-ton hydraulic winch is a safeguard.
