A slewing gearbox, also called a slewing drive, provides controlled rotational movement. It links a hydraulic or electric motor to heavy structures. Common applications include crane turrets, excavator upperworks, and aerial platform booms.
Why are they essential? Modern construction requires precise positioning, reliable capacity, and smooth motion in harsh environments. The right gearbox improves stability. It also helps handle heavy loads and gives the precision needed for safe, efficient work on site.
What Is a Slewing Gearbox?
It turns motor power into slow, controlled rotation for large structures. Inside the gearbox you’ll typically find a planetary gear train and an integrated slewing ring bearing. That large-diameter bearing supports axial, radial, and moment loads and carries the rotating structure.
The motor’s input shaft drives a precision geartrain that increases torque while reducing speed. Construction work creates heavy axial and radial loads, so slewing reducers use large bearings, robust housings, and shock-resistant components to withstand vibration and impact.
Core components and how they interact
A gearbox has gears, bearings, seals, and an output mount that connects to the machine’s structure. Planetary gearsets distribute torque across multiple planet gears, improving durability and fatigue life under frequent starts, stops, and shock loading. Compact, high-ratio packaging and high torque density are achieved with carefully designed planetary reducers, while positional holding is provided by an integrated normally closed brake rather than gear self-locking.
How slewing drives enable heavy equipment to rotate with high torque and precision
Slewing reducers deliver high torque at low RPM with minimal backlash, enabling precise control and smooth motion. When combined with motor controls, encoders or position sensors, and the integrated normally closed brake, the reducer becomes part of a closed-loop system for repeatable, safe rotations. The system produces repeatable, safe, and accurate rotations. Those rotations are essential for tasks like lifting, digging, and aligning equipment.
Learn about slewing reducers here.
Difference Between Slewing Gearbox and Regular Gearbox
A conventional gearbox transmits continuous power via shafts co-axial with the motor. Common applications include driving wheels, conveyors, and pumps. Such gearboxes use optimization for efficiency within a particular speed range. They generally don’t need support for large combined loads or for positional stability.
A gearbox, in contrast, is designed for intermittent rotation of heavy structures. The design with large bearing surfaces and slewing ring focuses on load-bearing capacity. It provides load holding through an integrated normally closed brake rather than relying on gear self-locking. Electric or hydraulic motors power the gearbox, making it suited for rotational tasks. It stays reliable under shock and delivers compact, high-torque power. Regular gearboxes can’t match that.
How Does a Slewing Gearbox Work?
The Internal Mechanics of a Slewing Drive
A slewing box takes the fast, low-torque power from a motor and turns it into slow, high-torque rotation. It does this with precision gears like planetary or worm drives. Large-diameter bearings handle the heavy structural loads.
In a planetary system, several planet gears rotate around a central sun gear. The load spreads across many contact points, improving reliability and higher power density. In these products, planetary gearing is used to deliver high reduction ratios within a compact footprint. For load holding, a normally closed brake is employed so the drive remains locked when power is removed; this provides deterministic holding behavior under fault or power-loss conditions.
Role of planetary gears and load distribution
Planetary gears spread torque across several gears. This lowers stress on each tooth and makes the system last longer. In construction, that matters because gearboxes often start, stop, and take sudden shocks. Planetary slewing drives cut down on gear wear. They also keep rotation accurate in many different working conditions.
Self-locking and safety-critical features
Some slewing boxes can lock themselves in place. In a few others, worm wheel tries to move the worm, friction stops it from turning. These rotary products rely on a normally closed brake for safety-critical holding. Because the brake engages when power is removed, the reducer remains locked in position during power loss or system faults. For high-safety applications, systems may add redundant brakes or electronic monitoring. This is important in jobs where movement could drop a load or cause instability. With brakes, strong housings, and extra seals, these drives hold position.
Types of Slewing Drives Used in Construction Equipment

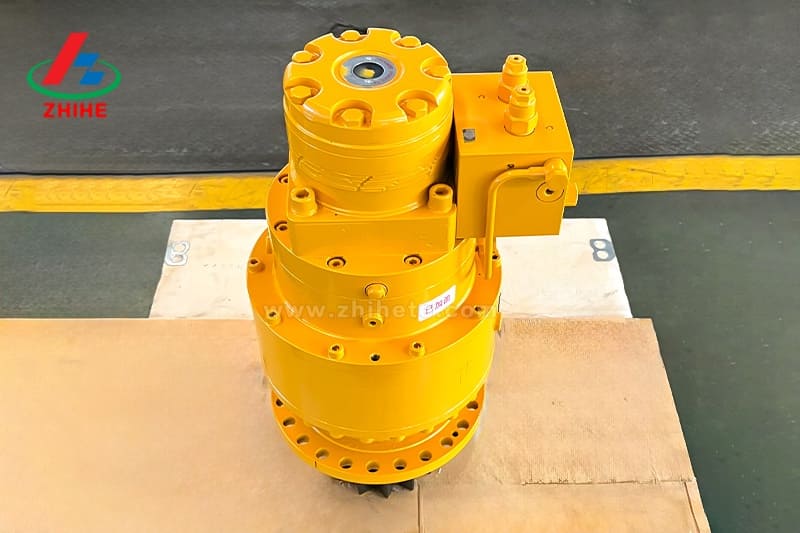

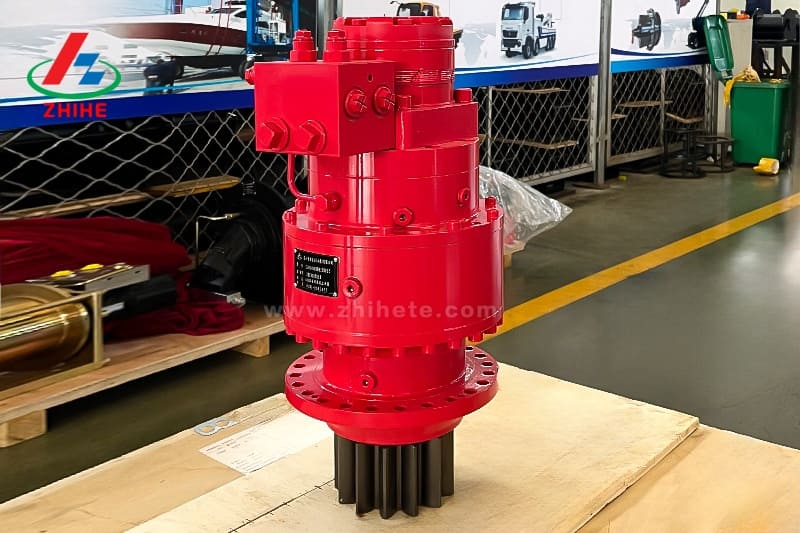

- Planetary Slewing Drives: often appear in heavy-duty machines. Ideal for more torque, higher load capacity, and long-lasting performance under constant stress. Great for cranes and large excavators.
- Worm Gear Slewing Drives: Offer compact design and self-locking characteristics. Worm gears are ideal when precise positioning and safe stationary holding are priorities.
- Combination Slewing Drives: Incorporate elements from many configurations. They support rotational and lifting operations. Such drives are best when both capabilities are necessary.
Good slewing drives use optimized gearing and low-backlash setups for smooth, accurate movement. When positioning a girder or concrete pump, smooth control can make the job safe or risky. That precision also makes repeated tasks quicker, improving efficiency and lowering labor costs.
Applications of Slewing Gear Boxes in Construction Equipment

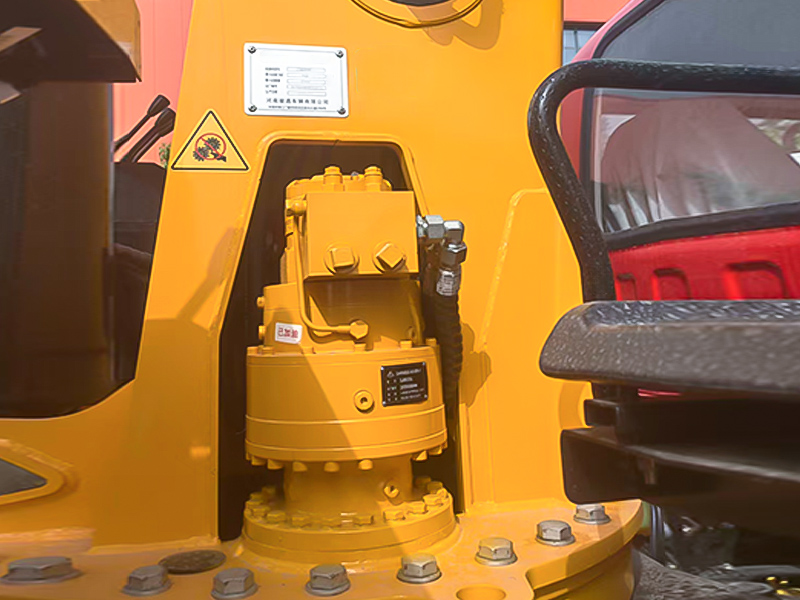

Slewing Drives in Cranes
Slewing drives enable cranes to rotate booms and superstructures with controlled torque. A well-built slewing gearbox supports the safe lifting and rotation of heavy loads. It helps in maintaining stability and precision.
Slewing Drives in Excavators
Slewing drives let excavator cabs and upper sections rotate. They can take both the vertical loads and the shifting forces from digging and lifting. Trenching and digging become accurate, ensuring machine stays safe and the load secure.
Slewing Drives in Loaders and Bulldozers
Loaders and bulldozers use slewing drives for attachments like buckets and blades. Slewing drives allow fine-tuned positioning during site preparation and material handling. That boosts productivity and accuracy.
Slewing Drives in Aerial Work Platforms
In aerial work platforms and lifts, slewing drives provide reliable boom rotation. They also hold the boom in place for maintenance, construction, and rescue work. Their small size and high power make them good for tight spaces.
Key Benefits of Using a Slewing Gear Box in Construction Equipment
Enhanced Stability and Load Capacity
Slewing reducers help keep machines stable by controlling rotation at the superstructure interface and by using robust bearings and an integrated brake to safely manage moment and off-center loads. The right gearbox and ring means no tipping or bending while lifting. Being able to handle moment loads is crucial for cranes and long booms. Slewing drives let machines lift more and reach farther without getting bigger.
Precision and Smooth Movement
Good slewing drives use optimized gearing and low-backlash setups for smooth, accurate movement. When positioning a girder or concrete pump, smooth control can make the job safe or risky. That precision also makes repeated tasks quicker, improving efficiency and lowering labor costs.
Durability and Reliability
Dust, moisturizer, temperature swings, and shock loading are common at construction sites. Tough jobs need tough slewing drives. They have strong housings, good bearings, seals, and proper lubrication to last longer. A tough gearbox means less downtime, lower costs, and fewer breakdowns. It turns the gearbox into a long-term investment instead of a recurring expense.
How to Choose the Right Slewing Gear Box for Your Construction Equipment
Key Considerations When Selecting a Slewing Gearbox
· Capacity of load: Calculate axial, radial, and overturning loads for full working range.
· Speed and reduction ratios: Choose gear and speed ratios to match operational needs.
· Type of motor: Compatibility with electric motors or hydraulic motor systems.
· Machine interface: Mounting, ring dimensions, and shaft compatibility.
· Environmental conditions: Corrosion resistance and seal type for harsh environments.
Matching slewing drive types to equipment needs
In big machines, planetary gearboxes can handle strong forces and last long. Choose a planetary reducer paired with a normally closed brake when you need passive, fail-safe holding. Planetary designs are generally preferred for cranes and heavy equipment due to their torque capacity and longevity. They can also have rust protection and seals to work better and last longer.
Rust protection, correct gears and seals are important. Especially for solar trackers, wind turbines, and satellite dishes.
Maintenance and Care for Slewing Drives
Proper Installation and Setup
Proper installation prevents early failure. Line up the motor and gearbox, tighten bolts, seat the slewing ring, and use the recommended grease. Check seals and joints for dirt or moisture, which can cause damage on construction sites.
Regular Maintenance for Longevity
Routine maintenance focuses on early detection. Regular checks for noise, vibration, and temperature spikes help catch issues early. Lubricate gears and bearings as scheduled, and replace seals and gaskets when needed. Watch vibration and check bolts to prevent problems and reduce repairs. This is critical for heavier machines.
Maintaining performance in harsh environments
Gearboxes with coatings, good seals, and purge systems are best for corrosive places. Also, use the right grease for the temperature and don’t mix different types of lubricants. When used right, slewing drives rotate smooth, carry heavy loads, and keep a steady speed.
Proper handling means controlled rotation, excellent load capacity, and consistent performance.
FAQs
How long does a slewing gearbox last in construction machinery?
Lifespan depends on duty cycle, load severity, and maintenance. The right slewing drive can last many years, often 5–15+ years in heavy use. Gear ratios choice, proper lubrication, and avoiding overload helps reach the longer lifespan.
Can a slewing gearbox be retrofitted to older equipment?
Retrofitting is possible but requires careful compatibility checks. Mounting dimensions, interface shafts, and slewing ring sizes must match. Retrofitting can update old machines. They get better speed control, higher torque, and safer load holding. It may need custom brackets or modified decks to fit the gearbox and bearing.
How much weight can a slewing gearbox handle in cranes or excavators?
The manufacturer sets the capacity. It shows how much axial load, radial load, and rotational torque the gearbox can handle. Instead of relying on one weight figure, check the full load case. This includes boom length, load center, and dynamic forces. Don’t forget to see the manufacturer’s ratings to pick a gearbox with the right safety margin.
Conclusion
Slewing drives turn motor power into precise, reliable rotation, even in tough conditions. Whether you need higher torque density, compact packaging, deterministic (passive) load holding via a normally closed brake, or extended lift capacity, there is a slewing reducer designed to meet those needs.
