Are you looking to enhance the reliability of your heavy infrastructure machinery under severe operating conditions? In this comprehensive technical guide, we will analyze the advanced engineering behind the planetary gearbox final drive and its capability to withstand intense torsional shock loads. These exact engineering protocols and structural upgrades have helped global fleet operators reduce unexpected drivetrain failures by 35% within the first year of deployment. Let us dive deep into specialized metallurgy, custom high-reduction ratios, and structural casing enhancements designed for the most punishing job sites. Ready to transform the uptime and mechanical efficiency of your heavy equipment? Let us get started.
The Brutal Reality: Mechanical Demands of Drilling Foundations on Travel Systems
Deep foundation drilling and piling operations represent some of the most mechanically hostile environments in the heavy construction industry. When a rotary drilling rig engages a hard rock layer or uneven stratum, the entire machine undergoes massive structural stress. The undercarriage travel system does not simply experience forward driving force from the hydraulic motors. Instead, it must absorb massive, high-frequency reverse shock vibrations transmitted directly from the drilling tool up through the track assemblies.
Rocky terrains and off-highway environments place an incredible amount of stress on the final drive gearbox casing. Without sufficient structural rigidity, these external forces cause minuscule misalignments in the internal gear train. When internal components shift even a fraction of a millimeter, it results in uneven tooth contact, localized stress concentration, and eventual catastrophic gear failure.
To prevent structural deformation under these severe conditions, heavy duty final drive wholesale manufacturers must redesign the structural geometry of the main housing. Utilizing advanced finite element analysis (FEA), engineers add thick reinforcement ribs and utilize premium cast iron or cast steel alloys with superior dampening capabilities. This structural rigidity ensures that the drilling rig track drive can handle sudden, multi-directional peak loads without cracking or distorting.
20CrMnTi Steel & Carburizing Quenching: The Ultimate Shield Against Shock Loads

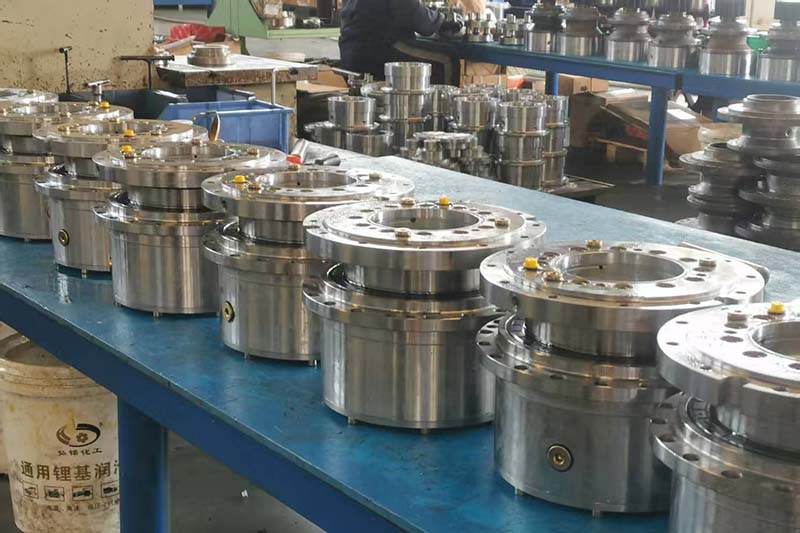

At the heart of every heavy duty planetary gearbox final drive lies a sophisticated arrangement of sun gears, planetary gears, and planetary carriers. Under extreme peak loads, standard carbon steels quickly succumb to fatigue wear or sudden brittle fractures. This is why leading manufacturers insist on utilizing premium 20CrMnTi alloy steel for critical torque-transmitting components.
What makes 20CrMnTi steel the ideal foundation for an infrastructure-grade final drive gearbox? The answer lies in its unique chemical composition, featuring optimal balances of chromium, manganese, and titanium. This specific combination delivers excellent core toughness while remaining highly responsive to advanced thermal treatments like carburizing and quenching.
The carburizing and quenching process creates a distinct, dual-layered metallurgical structure within the gear components. During carburizing, the gears are exposed to a carbon-rich atmosphere at elevated temperatures, causing carbon atoms to diffuse into the outermost layers of the metal. Subsequent quenching rapidly cools the material, transforming the outer layer into an ultra-hard, wear-resistant martensitic case.
This specialized heat treatment creates a tough, flexible core surrounded by a hard exterior shell. The ultra-hard outer layer effectively resists surface pitting, spalling, and abrasive wear caused by microscopic contaminants in the gear oil. Meanwhile, the ductile, high-strength core acts as a powerful shock absorber, flexing slightly under sudden impact loads rather than snapping. This prevents the primary transmission shaft from fracturing when the drilling rig strikes an unexpected hard granite boulder.
Maximizing Hydraulic Efficiency: The Power of Engineering Custom Ratios

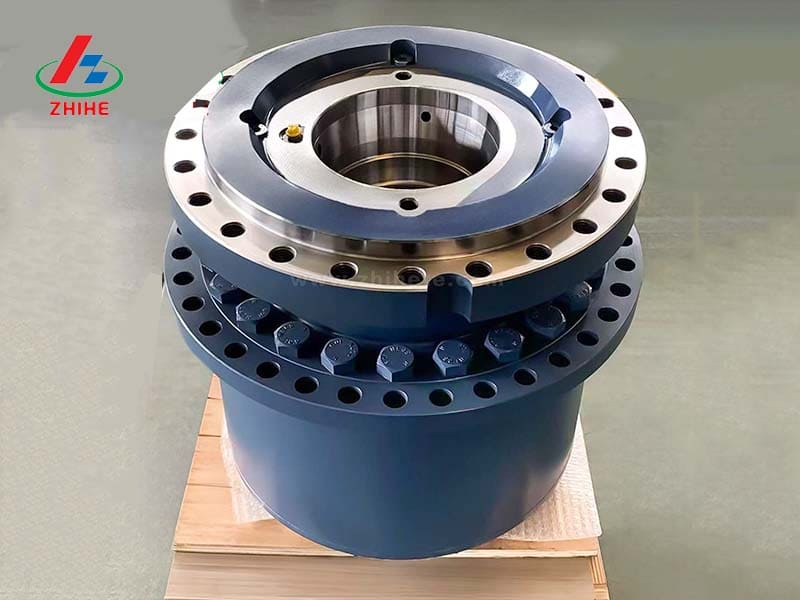

In large-scale infrastructure machinery, managing torque distribution efficiently is critical to protecting the primary power source. Integrating a high-reduction planetary gearbox final drive—specifically featuring gear ratios exceeding 100:1—is highly effective for maximizing torque while safeguarding the hydraulic track drive motor.
Why do large engineering vehicles rely so heavily on such high gear ratios? The main reason relates directly to the mechanical operational sweet spot of high-speed hydraulic motors. Hydraulic motors operate at peak volumetric and mechanical efficiency when running at higher rotational speeds with moderate pressure profiles.
If you force a hydraulic motor to rotate at extremely low speeds under massive direct resistance, internal fluid leakage increases dramatically. This drop in efficiency generates excessive thermal energy, leading to rapid degradation of hydraulic fluid, premature seal failure, and accelerated wear of internal pistons. By utilizing a planetary gearbox final drive with a ratio greater than 100:1, the hydraulic motor can spin freely at its optimal high-speed, low-torque setting.
The planetary gear train then converts this high-speed, low-torque hydraulic input into the massive low-speed, high-torque output needed to turn the heavy tracks through thick mud and rock. This mechanical leverage significantly lowers the operating pressure within the hydraulic system, which effectively extends the service life of the entire vehicle’s hydraulic motor.
Integrated Drivetrain Synergy: Balancing Motors and Gearboxes
Achieving long-term reliability in piling applications requires perfect harmony between the hydraulic drive motor and the mechanical reduction gears. When specifying components, matching the precise torque curves of the motor with the mechanical limits of the planetary system is critical. A mismatched drivetrain results in either an underutilized motor or an overloaded gearbox, both of which reduce overall efficiency.
Furthermore, advanced final drive units now feature integrated wet multi-disc braking systems directly inside the planetary assembly. These brakes utilize the existing gear oil circulation to dissipate heat, providing reliable holding power on steep slopes or unstable embankments. This integration protects the internal gear teeth from excessive backlash when the machine stops suddenly on uneven ground.
Lubrication management is another vital element of this integrated synergy. High-reduction planetary systems generate significant internal heat due to constant gear meshing under heavy loads. Advanced housing designs include optimized oil flow channels that use the rotation of the planetary carrier to splash lubricant thoroughly across all gear sets, preventing localized overheating.
Proactive Maintenance Strategies for Severe Duty Final Drives
Even the most robust planetary gearbox final drive requires proper field maintenance to ensure continuous uptime on demanding infrastructure projects. Because drilling operations generate continuous vibration, keeping a strict schedule for oil analysis and structural inspections is essential for preventing premature wear.
Operators should check the gear oil levels every fifty operating hours and perform a complete oil exchange after the initial break-in period. When draining the gear oil, inspecting the magnetic drain plug for large metallic debris provides an early warning of internal component wear. Small, microscopic metallic dust is normal, but larger flakes indicate potential gear pitting or bearing degradation.
Additionally, checking the integrity of the main floating seals is critical for preventing catastrophic failures. Floating seals keep vital lubricants locked inside the housing while blocking out external abrasive contaminants like drilling mud, sand, and pulverized rock. If a floating seal fails, abrasive particles quickly enter the gear chambers, turning the lubricating oil into an abrasive grinding paste that destroys the hardened 20CrMnTi gear surfaces within hours.
Selecting the Right Heavy Duty Final Drive Partner
When sourcing critical drivetrain components for large-scale infrastructure projects, choosing the right manufacturer is just as important as the engineering specifications. High-quality heavy duty final drive wholesale suppliers must offer comprehensive testing verification alongside their manufacturing capabilities. Every planetary unit should undergo rigorous load testing on specialized dynamometer benches before leaving the factory floor.
Furthermore, look for partners who provide deep customization capabilities rather than generic, off-shelf solutions. A truly reliable partner can adjust gear ratios, mounting configurations, and input spline options to match your specific fleet requirements perfectly. This level of precision engineering ensures seamless integration with your existing hydraulic track drive motor systems.
Conclusion and Next Steps
Securing maximum uptime for your heavy piling and drilling machinery requires an intentional focus on structural rigidity, premium metallurgy, and optimized gear ratios. Implementing robust planetary gearboxes equipped with 20CrMnTi alloy steel and high-reduction ratios will immediately protect your hydraulic systems and prevent costly field breakdowns. Now that you understand the core engineering principles that drive heavy equipment reliability, take a proactive step toward fortifying your fleet against extreme peak loads.
