Heavy equipment isn’t powered by muscle strength—it’s powered by precision. Behind smooth, consistent motion is one very important element: the slew gearbox. From cranes to excavators, the unit governs rotation, load-bearing capacity, and stability. Get it wrong, and you’re looking at downtime, safety concerns, and expensive repairs. Selecting the correct slew gearbox is more than a technical decision—it’s a step in the direction of more power and extended machine life.

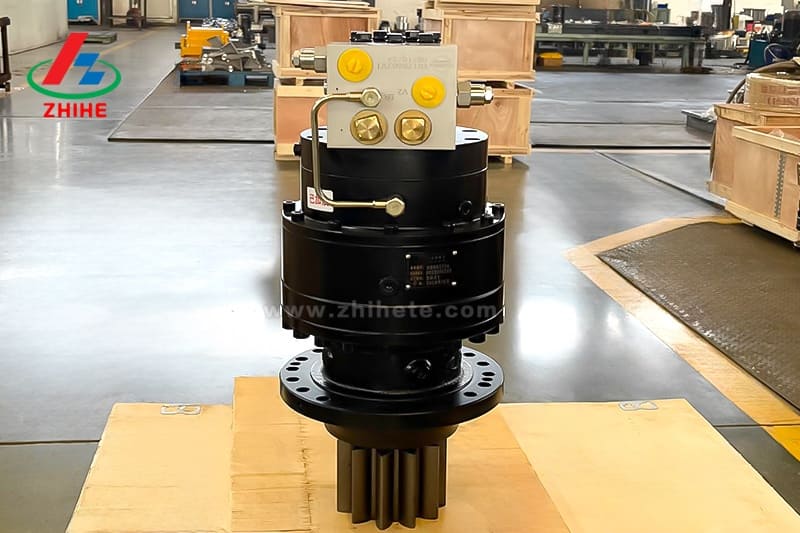

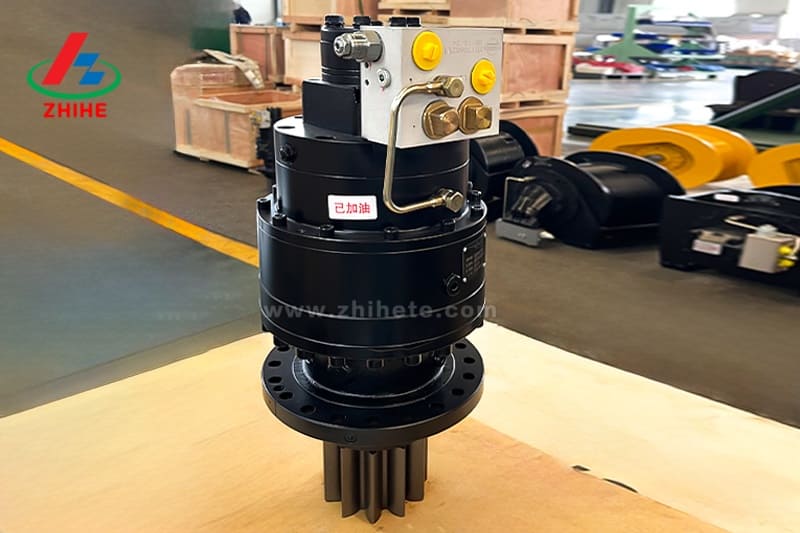

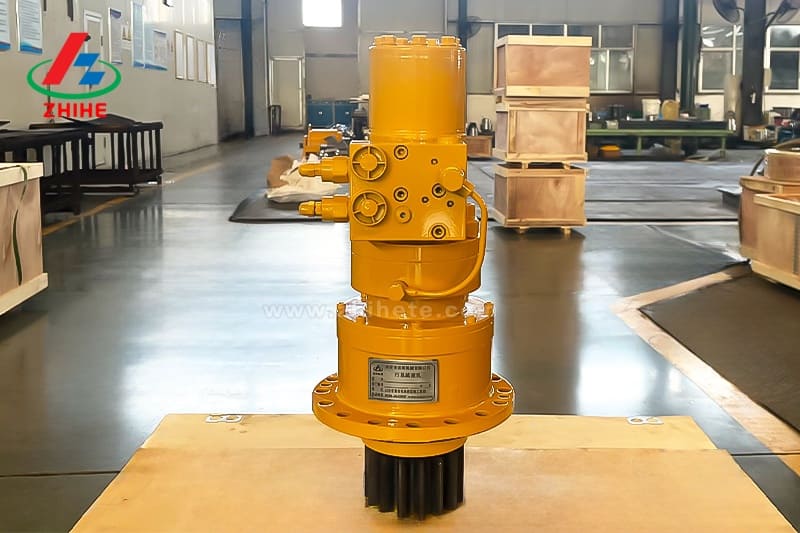

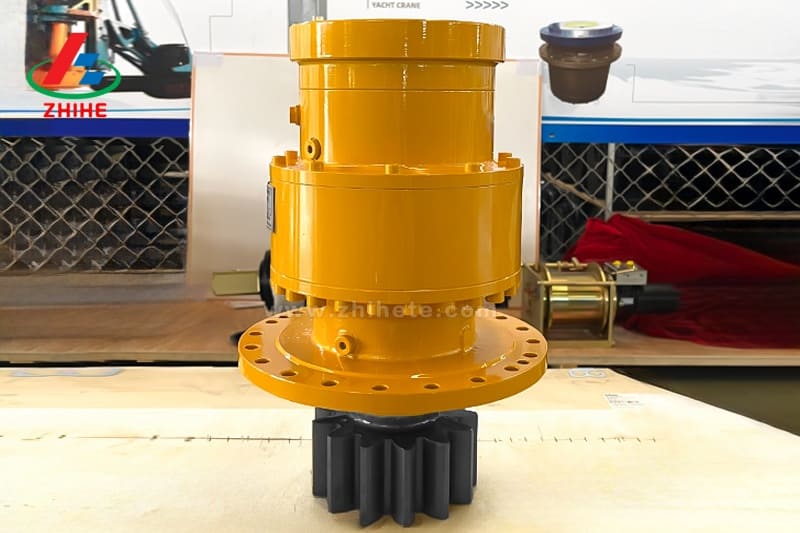

What Is a Slew Gearbox?
A slew gearbox is a mechanical system that offers high torque rotation. It finds applications in construction machinery, mining machinery, and heavy industry machinery. The gearbox combines effort with a slewing bearing to move radial or axial loads. It enables machines to create radial torque and moment loads.
Important elements include planetary gears, bearings, an input shaft, and an output shaft. Slew gearboxes provide accurate, controlled rotation and the correct rotational speed. Utilizing the correct gearbox provides added load capacity and high rotational torque. Some models have an onboard slewing drive for specific uses.
Types of Slew Gearboxes
- Planetary Slew Gearboxes
These are applied in heavy-duty applications. They have high torque in small design. They support axial loads and radial torque. Balanced speed ratio supports rotational motion with smoothness.
- Worm Gear Slew Gearboxes
Suitable for space-saving and self-locking layouts. They have high rotational torque and support moment loads. They are suitable when the axial loads require additional control.
- Combination Slew Gearboxes
Utilized for slewing and lifting loads. Efficient in executing axial or radial loads. Have controlled rotational speed at heavy load.
- Custom Slew Gearboxes
Engineered for particular machinery or working conditions. They may be merged with slewing drives for smooth slewing. Mostly applied in wind turbines or specialized industrial equipment. They give high torque and facilitate needed load capacity.
Key Factors to Consider When Choosing a Slew Gearbox for Your Machinery
Selecting the ideal slew gearbox is vital to your equipment. It is different in terms of performance, maximizing lifespan, and ensuring that operation is safe. A number of factors must inform your selection.
Load Capacity and Torque Requirements
Start by knowing the load capacity your machine needs. Torque force and rotational torque measurement under heavy loads are vital. Correct gear ratios keep power consistent and protect the gearbox.
Correct capacity ensures steady performance. It prevents gear tooth and radial gear component damage. Finite element analysis locates stress points in advance. That stabilizes the system and makes it safe.
Think about the duty cycle of your machine. Some gearboxes need to run continuously. Other ones run in spurts. Choose one that will withstand high overhung loads without failing.
The perfect gearbox improves rotational precision. It also offers high efficiency on hard jobs. In the long term, high efficiency saves energy and prolongs the life of your equipment.
For further insight into how a gear slewing system helps construction machinery, check out what is a slewing gearbox and how does it help in construction equipment.
Speed and Rotation Control
Select a gearbox with the appropriate rotation speed. It provides smooth rotation of arm, boom, and other moving elements. Precise gear transmission provides accuracy devices. Hydraulic motors or electric motors with the appropriate gearbox increase efficiency and performance.
Environmental Considerations
Consider dust, temperature, and humidity. The proper seals and materials keep the gearbox secure. Gear slewing in heavy-duty applications is dependent on heavy-duty slewing rings and sometimes right-angle gears. It’s necessary for solar trackers or military hardware.
Durability and Longevity
Long-lasting gearboxes withstand wear and tear. Selection and maintenance guarantee long life. Sub-assemblies such as gear teeth, radial gear, and slewing rings deliver high rotational torque and free running under load.
Compatibility with Machinery
The gearbox should be the correct size, mounting, and operation needs for your machine. Adherence to the manufacturer’s guidelines provides proper transmission of the gears. Proper alignment enhances efficiency in solar trackers and mechanical equipment. For tips on compatible lifting systems, see top cost-effective winches for every budget.
How to Match a Slew Gearbox to Your Machinery Type
It is important to match the proper slew gearbox to your machinery. Various movement, load, and accuracy requirements exist for every equipment type. Proper choice of gearbox guarantees safe operations, smooth performance, and extended equipment life.
Slew Gearboxes for Cranes
Heavy torque is needed in cranes to swing loads securely. Planetary gearboxes are well suited since they help in smooth and accurate movement. The perfect gearbox provides stability as well as secure load handling. A gearbox that suits your crane capacity and size enhances efficiency as well as minimizes wear.
Slew Gearboxes for Excavators
Slewing gearboxes are depended upon by excavators to swing the arm and rotate the cab. The gearbox has to support heavy loads but keep rotating in a precise fashion. Choosing a gearbox that can support the required load ensures secure trenching and digging work. Proper gear choice also avoids gear teeth damage and ensures longer life.
Slew Gearboxes for Bulldozers and Loaders
Slewing gearboxes in bulldozers and loaders assist in tool position such as buckets and blades. Stability and torque are important while operating in earthmoving and site clearing. Smooth rotation and accurate movement is provided with a correct gearbox even during heavy workload.
Slew Gearboxes for Aerial Work Platforms
Aerial work platforms require gearboxes in order to achieve precise extension and retraction of arms. Safety is paramount, and the gearbox should be capable of exercising control under load. Selecting the appropriate gearbox enhances rotary motion and allows safe and precise positioning for operators.
Common Mistakes to Avoid When Selecting a Slew Gearbox
Proper selection of the slew gearbox is crucial. Inefficient selection will result in breakages and reduced efficiency. Many operators make mistakes that can be avoided. They save money, time, and guarantee smooth machine operation.
Miscalculation of Load and Torque Capacity
A common error is choosing a too small gearbox. It will prove insufficient under load. The machines stall or slow down. Radial gear parts and gear teeth are ruined.
Key pointers:
- Check your machine’s torque and high rotational torque.
- Make sure the load capacity aligns with your machinery.
- This step is important in ensuring optimal performance.
Overlooking Environmental Considerations
Environmental factors have a great influence. Heat, dust, and humidity shorten lifespan of the gearbox. Use of wrong material or seals reduces lifespan.
Points to keep in mind:
- Use slewing rings and perpendicular gears designed for harsh conditions.
- Consider equipment like solar trackers or military equipment.
- Getting the right choice increases rotational accuracy and silky-smooth rotation.
Choosing the Wrong Type of Gearbox
Not every gearbox fits every machine. The incorrect selection may harm performance and safety. Planetary gearboxes are suitable for high rotational torque requirements. Worm gearboxes fit self-lock and space-reducing applications.
Remember:
- Pay attention to planetary vs worm gearbox distinctions.
- Select the one that fits your machine to provide gear transmission and precision devices.
- This ensures proper rotation speed and safe, smooth operation.
Maintenance Tips to Prolong the Life of Your Slew Gearbox
Taking good care of your slew gearbox is the best way to ensure it lasts long. Inspections and basic practices can keep you from breaking down, save you from downtime, and prevent you from incurring costly repairs. Treat it as maintenance routine that keeps your heavy equipment at its peak performance.
Lubrication and Inspection
- Lubrication is the secret to healthy gearboxes. Without it, friction builds up and wears out the gears.
- Use the appropriate lubricant approved by the manufacturer. The wrong oil can cause more harm than good.
- Check the oil levels regularly. Incomplete lubrication overheats the gearbox and destroys the gear teeth.
- Pay attention to unusual noises such as grinding or knocking. These are early signs something is wrong.
Periodic checkup also includes looking for cracks, leaks, or misalignment. Fixing small issues beforehand is always cheaper than fixing a major breakdown later.
Replacing Bearings and Seals
Bearings and seals take a great deal of stress during use. They may become weakened over time.
- Seals prevent dust and dirt from entering and keep oil inside. When they are damaged, contaminants enter and wear out the gears.
- Bearings support smooth rotation. If they wear down, you’ll notice vibration or wobbling.
- Don’t wait too long to replace them. A worn seal or bearing can damage other gearbox parts. Quick replacement keeps the system stable and accurate.
Monitoring Load Conditions
Overloading is one of the fastest ways to shorten the life of a slew gearbox. When a machine carries more than it’s built for, it strains the gears and bearings.
- Always determine your gearbox’s load capacity.
- Instruct your operators not to exceed those thresholds.
- Monitor performance. If the gearbox is slow with normal loads, it may already be overloaded.
Frequently Asked Questions
What’s the difference between planetary and worm slew gearboxes?
Planetary gearboxes provide high torque and compact size for heavy loads. Worm gearboxes provide self-locking and space-saving but usually face lighter loads.
How can I tell if a slew gearbox is the right size for my machinery?
Verify the load capacity, torque force, and rotation speed required by your machine. Compare them to the gearbox ratings.
Can a slew gearbox be retrofitted to older machines?
Yes, in general. You have to match the mounting, size, and load demands with the old machine.
How long does a slew gearbox typically last in construction machinery?
With proper maintenance, regular lubrication, and load monitoring, a slew gearbox can last for many years. Life expectancy is determined by use, conditions, and maintenance.
Conclusion
The selection of an appropriate slew gearbox is critical for your equipment. Take into consideration load capacity, torque demand, gearbox design, environmental conditions, and proper maintenance. Proper selection guarantees smooth rotation, high rotational torque, and long operational life.
Consulting experts or manufacturers is always advisable. They can make suggestions based on your unique equipment and operating requirements.
