Looking to eliminate agonizing lead times and slash astronomical OEM costs for your heavy machinery final drives? In this ultimate technical procurement guide, we will break down exactly how global engineering fleets swap out failing components with high-performance, direct-fit alternatives without modifying their structural platforms.
These exact plug-and-play engineering strategies have allowed commercial heavy equipment rebuilders and global fleet maintenance operations to lower aggregate components procurement budgets by up to 45% while achieving identical mechanical lifespans.
Let us dive deep into the precision technical boundaries of direct interchangeability, the structural engineering differences between OEM premiums and factory-direct alternatives, and the exact dimensional parameters you must verify to order a flawless structural fit.
Ready to transform your industrial operations and regain control over your fleet maintenance cycle? Let’s get started.

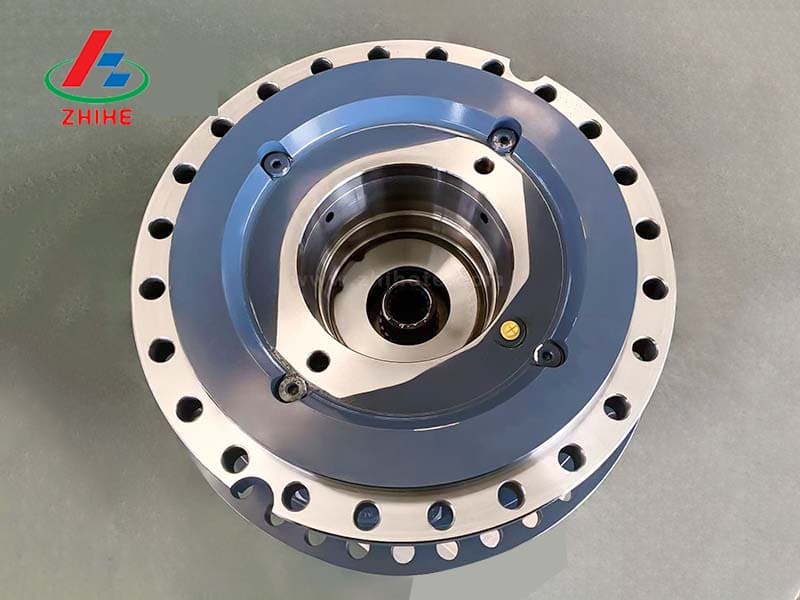

What is a “Drop-In Replacement” in Planetary Travel Drives?
When an offshore crawler crane, tracked excavator, or horizontal directional drilling rig suffers a final drive mechanical failure, waiting months for an OEM component translates directly to catastrophic operational downtime losses. This is where a professional, highly specialized travel gearbox manufacturer bridges the gap by supplying an absolute, high-integrity drop-in replacement.
But what truly defines a genuine “drop-in replacement” in the heavy-duty planetary drive ecosystem? It means 100% mechanical, structural, and hydraulic interchangeability with zero modification required on the existing machine chassis or hydraulic plumbing lines.
The 4 Pillars of Mechanical Interchangeability
To successfully execute a rexroth travel gearbox replacement or find a viable Brand track drive alternative, a unit must conform flawlessly across four strict engineering metrics:
- Mounting Flanges & Bolt Circles: The bolt hole pattern on the sprocket side and the machine frame side must precisely match the legacy unit. Any deviation in the pitch circle diameter (PCD), number of tapped holes, or bolt sizes makes structural installation impossible.
- Pilot Diameters (Spigots): The pilot diameters provide the precise concentric alignment necessary to handle heavy shear loads. If the spigot tolerance is too loose, the travel drive will suffer from catastrophic high-frequency vibration, leading to premature shaft shear and bearing failure.
- Output Shaft Splines and Dimensions: The male or female spline configuration must perfectly engage with the existing drive sprocket or wheel hub assembly. Spline standard deviations (such as module sizes, pressure angles, or tooth counts) will cause immediate matching failure.
- Exact Gear Ratio: The overall reduction ratio (i) must be an exact match to the original manufacturer’s specifications. If you install an alternative reducer with an improper ratio on one side of a crawler track system, the dual tracks will fail to synchronize properly, causing the machine to veer severely to one side during forward travel operations.
Engineering Note: When looking to execute a brand travel reducer replacement, structural matching is only half the battle. The alternative unit must deliver identical continuous torque output (T₂_c) and peak dynamic breakdown torque (T₂_max) to guarantee safe operations under extreme slope climbing conditions.
Cost Efficiency vs. Quality: Finding the Right Alternative Manufacturer
Many procurement managers hesitate to source outside traditional OEM channels due to a persistent misconception: the myth that a non-OEM alternative automatically correlates to inferior structural quality. However, globalized precision manufacturing, automated CNC grinding advances, and modern metallurgy standards have completely leveled the industrial playing field.
By bypassing the complex multi-tiered distributor networks of legacy European brands, a dedicated industrial travel gearbox manufacturer can optimize production economics. The result is a world-class alternative that eliminates the substantial “brand tax” while meeting or exceeding traditional international standards.
Comparing Structural Profiles: OEM Standards vs. Direct Engineering Alternatives
| Technical Dimension | Legacy OEM Brands (Rexroth / Other Brand) | Premium Alternative Factory Standard |
| Lead Time | 12 to 24 Weeks (Typical Factory Backlog) | 2 to 4 Weeks (Ready-to-Ship Standard Components) |
| Gear Metallurgy | 18CrNiMo7-6 Carburized & Quenched Steel | 18CrNiMo7-6 or 20CrMnTi Precision Heat-Treated Steel |
| Gear Tooth Precision | DIN Class 5 / 6 Precision Profile Grinding | ISO Class 6 (Equivalent to DIN 5/6) CNC Profile Grinding |
| Procurement Cost | 100% Base Line (High Brand Markups) | 40% to 60% Savings via Supply-Chain Optimization |
| Sealing Systems | Premium Heavy-Duty Mechanical Face Seals | FKM O-Rings & High-Performance Duo-Cone Seals |
When you make a strategic corporate decision to buy hydraulic travel reducer assemblies from an independent factory source, you are choosing specialized engineering expertise over marketing overhead. Modern alternative manufacturers utilize advanced finite element analysis (FEA) to reinforce high-stress load zones within the planetary carrier assemblies, ensuring long-term structural reliability in harsh mining, drilling, and marine construction applications.
How to Order Custom-Engineered Travel Gearboxes for Maintenance Fleets
Eliminating the risk of an incorrect structural fit requires a systematic verification process. If you manage a heavy equipment maintenance fleet or operate a machinery rebuilding facility, providing a clear technical blueprint ensures a flawless, drop-in replacement on the first try.
The “Perfect Fit” Technical Verification Checklist
Before contacting an engineering team to request a custom or alternative quote, collect the following critical data points:
- The Original Nameplate: A clear, legible photograph of the existing Rexroth and other brand nameplate. The complete model code and serial number sequence allow engineers to instantly map the exact original internal gear ratios and output torques.
- Flange and Spigot Dimensions: Accurate physical measurements of the frame pilot diameter, sprocket pilot diameter, and corresponding pitch circle diameters (PCD) for all mounting bolts.
- Hydraulic Motor Interface Profile: Clear identification of the motor mount configuration. Is it a standard SAE 2-bolt/4-bolt flange, or a specialized, integrated plug-in variable displacement hydraulic motor interface?
- Application Environment Data: Total operating weight of the heavy machinery, maximum circuit hydraulic working pressure (P_max), and unique environmental variables (such as extreme sub-zero environments, subsea operations, or high-abrasion desert environments).
By collecting these primary design metrics, our dedicated applications engineering team can rapidly cross-reference your configuration against thousands of active production drawings, matching you with a plug-and-play travel drive solution that drops straight into your existing machine frame.
Maximize Fleet Uptime Without the OEM Premium Price Tag
Heavy equipment asset managers and machine rebuilders are no longer locked into restrictive OEM supply chains, exorbitant parts pricing structure, or multi-month production backlogs. By executing technical transitions to qualified, direct-fit alternative components, you can keep your heavy equipment operational, predictable, and highly cost-effective.
For more detailed technical insights on how planetary gear geometry impacts overall machine efficiency, be sure to read our comprehensive industry breakdown on Planetary Gearbox Load Management and Fatigue Prevention.
Partner with a World-Class Global Travel Gearbox Manufacturer
As a leading global travel gearbox manufacturer with over two decades of heavy-duty transmission engineering experience, we specialize in delivering precision-engineered, direct-fit drop-in alternatives for heavy machinery around the world. Our deep manufacturing capabilities utilize state-of-the-art CNC profile grinding, rigorous multi-stage cleanroom assembly, and 100% full-load dynamic testing to ensure that every final drive shipped matches or exceeds strict international field performance standards.
Do you have an idle machine down on the job site or an upcoming fleet overhaul schedule? Don’t let OEM backlogs derail your project timelines. Contact our Application Engineering Team today to submit your original nameplate photos and secure a rapid, guaranteed-fit technical quote.
