In deep foundation projects and extreme mining exploration, the efficiency and safety of the entire operation often hinge on the raw power behind a single wire rope. This is where the hoisting winch comes into play. As the central muscle of heavy construction machinery, choosing the right hydraulic lifting mechanism can mean the difference between a seamless execution and costly project downtime.
If you are looking to optimize your fleet’s lifting capacity or find a reliable OEM replacement, this comprehensive guide will break down the essential technical considerations for heavy-duty hydraulic winches.
1. Why the Hoisting Winch is the “Heart” of Drilling & Piling Rigs
Heavy-duty engineering machinery operates under some of the most brutal mechanical stresses in the industrial world. The hoisting winch is not just an auxiliary component; it is the core power mechanism that drives daily production.
The Demands of Rotary Excavation and Piling
In rotary drilling and piling operations, the winch system undergoes continuous, high-frequency duty cycles.
- The Main Winch : This mechanism is responsible for lifting and lowering heavy Kelly bars and drilling tools. It must consistently overcome severe underground soil suction, frictional drag, and deep formation resistance.
- The Auxiliary Winch : This unit manages lifting tasks such as positioning heavy steel casing pipes, reinforcement cages, and structural tools. It requires rapid line speeds and precise control to maintain overall site efficiency.
The Demands of Mining Drilling
For surface and underground exploration drilling, the hoisting winch faces different, yet equally grueling, challenges. Deep-hole drilling requires the winch to hold extreme static loads for extended periods without slipping. It must also provide smooth, continuous line pull to prevent sudden impacts that could cause catastrophic drill string snapping or stuck-pipe scenarios.
2. Key Technical Features Required for Construction Winches
To survive these demanding environments, standard commercial winches are not enough. Heavy construction machinery requires highly engineered, purpose-built hydraulic hoisting systems featuring several critical technical indicators.
High Torque & Multi-Stage Planetary Gearboxes
Space on a rotary drilling rig or mobile piling platform is always limited. High-impact winches utilize multi-stage planetary gear drives integrated directly inside the winch drum. This compact configuration maximizes torque output while keeping the overall footprint small, delivering massive lifting capacity without bulk.
Integrated Hydraulic Braking Systems
Safety is the absolute priority on any construction site. Reliable engineering winches utilize an integrated, spring-applied, hydraulically released multi-disc brake system. This acts as a dynamic and static fail-safe mechanism. The moment hydraulic pressure drops, the wet brake plates automatically engage, ensuring that heavy drilling tools stay securely locked in mid-air with zero back-slip.
Precision Grooved Drums (LEBUS System)

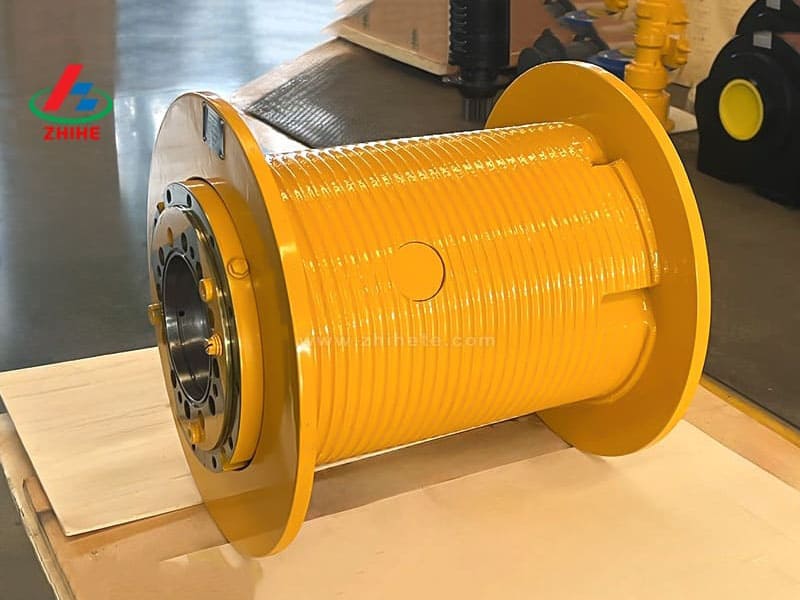

When handling hundreds of meters of high-tensile wire rope under immense tension, improper spooling can crush or fray the cable within days. High-performance winches utilize specialized involute grooved drums or LEBUS double-joint line grooves. This geometry forces the wire rope to spool smoothly across multiple layers, preventing bird-nesting, crushing, and uneven wear, which significantly extends the lifespan of your steel cables.
- [Hydraulic Motor] ➔ [Integrated Multi-Disc Brake] ➔ [Multi-Stage Planetary Gearbox] ➔ [LEBUS Grooved Drum]
3. Application Showcases: Where Our Winches Excel
Different industrial rigs require tailored lifting profiles. Industrial hydraulic hoisting winches are typically engineered to match the precise structural requirements of major heavy equipment lines.
| Application Rig Type | Winch Function | Key Technical Target | Typical Fleet Compatibility |
| Rotary Drilling Rigs | Main Hoist | 15-Ton to 50-Ton high line pull with rapid response | SANY, XCMG, zoomlion |
| Piling Drivers & Sheet Piling | High-frequency casing installation | Shock-load resistance & robust multi-disc braking | Hydraulic Impact Hammers, Vibro Rigs |
| Mining & Exploration Drigs | Deep-core drill string retrieval | Constant line pull, high rope capacity, dust-proof sealing | Core Drilling Rigs, Water Well Equipment |
4. Checklist for Overseas Buyers: How to Order the Perfect Winch
Sourcing a replacement hydraulic winch or choosing an OEM design for your fleet requires precise technical alignment. If you are preparing a request for quotation (RFQ), ensure you have gathered the following core specifications.
1. Rated Line Pull
Always specify the required pulling force on the first layer of the drum. As wire rope layers build up, the effective torque radius increases, which naturally reduces the available pulling force. Knowing your maximum weight requirement at the deepest drilling depth is vital.
2. Line Speed
Calculate how fast you need the tool or casing to be lifted. High-frequency drilling operations require faster line speeds to reduce trip time, which demands a careful balance of hydraulic flow and pressure.
3. Rope Capacity
You must specify both the total length and the diameter of the wire rope you intend to use. This determines the overall physical dimensions of the winch drum and the specific drum grooving profile required.
4. Available Hydraulic System Pressure & Flow
A winch can only perform as well as the hydraulic system powering it. Ensure your rig’s main pump can deliver the necessary working pressure (measured in Bar or PSI) and flow rate (L/min or GPM) to drive the winch motor efficiently under full load.
Pro Tip on Customization: If you are performing aftermarket maintenance or upgrading an existing rig from brands like SANY or Zoomlion, look for manufacturers who provide custom mounting base plates and spline shaft alterations. This allows you to drop the replacement winch directly into your existing chassis without costly frame modifications.
Conclusion
Selecting the right hydraulic hoisting winch is a direct investment in your project’s uptime, operational efficiency, and workplace safety. By focusing on multi-stage planetary reliability, fail-safe hydraulic braking, and proper drum grooving, you protect your drilling fleet from unexpected breakdowns in the field.
Now that you understand the core technical components of heavy-duty lifting mechanisms, consider auditing your current machinery’s winch performance to see where a planetary system upgrade could boost your operational output.
