A cost-effective winch gets you quality performance without breaking the bank. It’s not price—it’s value. A strong winch motor, a tough pulling capacity, and a good brake system all matter.
In real-life, winches are used for heavy-duty. Be it recovering a vehicle, off-roading, or using it for work, you need it to be long-lasting. For that reason alone, we used real user reviews, established winch companies, and popular brands to find the perfect match for you.
This guide will help you choose a suitable winch that falls within your budget. We will cover top recommendations in different price categories and uses. You will also learn about key features like synthetic rope winches, steel cable, wireless remote systems, and winch mounts.
What Engineers Look for in a Winch
Engineers look for a few key things when choosing a winch. First is load capacity. A winch must pull the rated weight safely, with a margin of safety. This helps avoid accidents or equipment damage.
They also pay close attention to durability. Good winches perform well even after heavy use. The winch drum should hold up over time, especially with accessories like synthetic line or steel cable. Some winches even come with roller fairleads or aluminum hawse fairleads, which help reduce wear on the line.
Next is ease of maintenance. Engineers prefer winches that are easy to service and don’t need constant repairs. The control box should be accessible, and free spooling should work smoothly to allow for fast rope deployment.
Power source is another major factor. Hydraulic winches are ideal for long, heavy-duty use. Electric winches, on the other hand, are easier to install and great for vehicle recovery or lighter jobs. Many winches now offer wireless remote or wireless operation, giving users more control and flexibility.
Line speed matters too. A winch that pulls too slowly wastes time. But if it’s too fast without the right power, it can be dangerous. Engineers compare specs carefully and often look for winch accessories to help with performance and safety—like a tree saver strap for recovery work.
Finally, engineers want a solid price-to-performance ratio. Some red winches are known for their premium quality, while others are more budget-friendly. But even other winches can perform well when paired with the right setup.
Choosing the only winch you’ll need comes down to more than power. It’s about the right mix of strength, reliability, and features that suit your job.
Want to learn more about how winches work? Check out this complete guide to winches.
Winch Tonnage Guide: What Size Do You Need?
Start with the weight of what you’re pulling.
Your winch should be equal to—or greater than—that weight for safety and performance.
Typical Tonnage Ranges:
- 1-ton winch – Ideal for smaller cars, ATVs, or light utility use.
- 3-ton winch – Perfect for light vehicle retrieval, off-road, or jeeps.
- 5–10 ton winch – For heavy vehicles, trailers, and some work trucks.
- 20+ ton winch – Needed for industrial machinery and bulk recovery work.
Always add a safety margin. Use more than the actual weight to avoid overloads and harm to yourself.
Recommended Cost-Effective Winches by Tonnage (with Engineer Feedback)
The proper winch choice isn’t purely based on raw power. It’s winch sizing to the task. Over-size it and you’ll have breakdowns. Under-size it and you’re throwing money away. Here, we divide it up by tonnage—what each size is best for, what to watch out for, and what real engineers suggest.
1–3 Ton Winches
That’s ideal for light-duty applications. Consider trailers, ATVs, farm equipment, or light construction booms. These winches are small, simple to install, and will not require a high-powered power source. They’re used mostly with standard 12V or 24V systems.
A common application scenario? Towing fencing materials or rolling small equipment short distances. They’re ideal also for temporary hoisting installations in confined areas.
However, power does count. One of the engineers said to us:
“Undersizing your winch is the fastest way to blow it out.”
So, even for minor jobs, use some reserve capacity.
5–8 Ton Winches
This is where most mid-sized job sites operate. 5–8 ton winches offer the pulling power needed to recover stuck vehicles, lift heavy beams, or move bulky construction materials. You’ll often find these winches mounted on mobile cranes and medium-sized equipment.
At this level, you’ll typically need more industrial-grade setups—either electric or hydraulic—paired with proper mounting hardware and a receiver mount if it’s being used on a vehicle. In return, you get better control, faster line speed, and greater reliability.
Look for models that include smart features like cooling systems or auto shut-downs. These prevent damage during long pulls or repeated use, preserving your investment.
Some comeup winches in this range use durable spur gears and optimized gear ratios to maximize both torque and efficiency. You might also consider adding a snatch block to safely double your pulling capacity when needed.
For ease of use, a remote control—wired or wireless—makes operation more flexible and safer from a distance.
10–15 Ton Winches
Now we’re getting into heavy-duty territory. Winches in this class can pull large equipment, hoist engine blocks, or move structural elements like steel or concrete. Perfect for truck beds, rigging systems, and general industrial lifting.

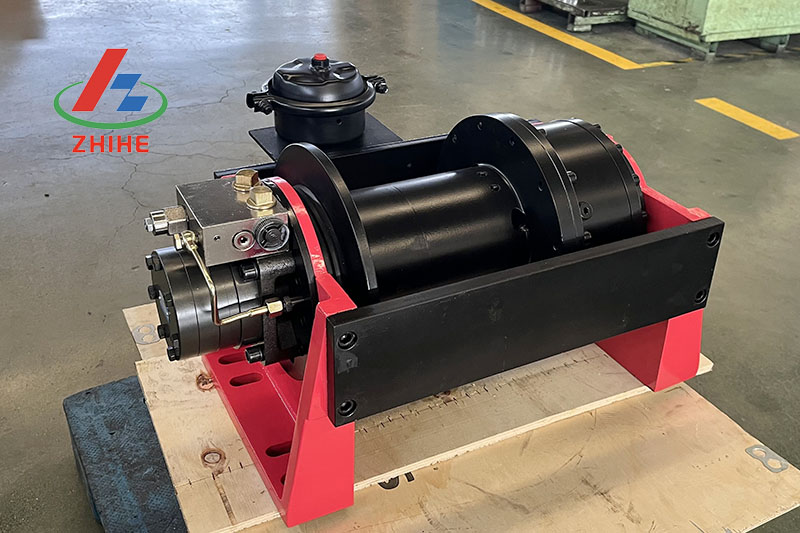

You’ll want something with high torque, strong winch cable winding, and low maintenance needs. A great example here is the ZJQS26 hoist winch. It’s designed for all kinds of engineering lifting machinery and hits that sweet spot of power and efficiency.
- It features a double folding groove, which helps the steel rope wind cleanly without overlap.
- The transmission ratio is 5.7, giving it excellent control under load.
- With a 3200 maximum output torque and single rope pull capacity of 20,000 N, it easily does most medium-heavy jobs.
Bonus: It’s easy to fit and has a low failure rate—something engineers in the field appreciate.
20+ Ton Winches
These winches are designed for serious constant pulling. Consider mines, ports, shipyards, or large rail operations. They’re found on monster cranes or deep well drilling systems.
They possess advanced hydraulic motors or high-voltage electric motors. There is an upfront expense, but reliability is also there.
You are dealing with loads that are tens of tons in dimension. Failure in such environments is not acceptable.
Engineer comments:
“We ran a heavy-duty winch such as this 24/7 off a marine construction site. It needed minimal maintenance in two years.”
If you’re watching this class, you likely have a high-volume or mission-critical application. Install with professional assistance and ensure your power system will support the winch loads.
Winch Comparison Table by Tonnage & Value
| ProductionType | Capacity(T) | Crane onnage(T) | Single Rope Pull Maximum(N) | DriveMode | ApplicationScenario |
| ZJQS26D6 | 2T | 6T | 22000 | Hydraulic | Truck mounted crane |
| ZJQS41 | 3.3T | 12~14T | 32000 | Hydraulic | Truck mounted crane |
| ZJQS42C | 3.4T | 12~14T | 33000 | Hydraulic | Truck mounted crane |
| ZJQS85C | 5.6T | 18~20T | 55000 | Hydraulic | Truck mounted crane |
| ZJQW40G4 | 3T | 12~14T | 30000 | Hydraulic | Truck mounted crane |
| ProductionType | Capacity(T) | Single Rope Pull ofFirst Layer(KN) | Working Pressure(Mpa) | DriveMode | ApplicationScenario |
| ZJJ08A | 8T | 78 | 17 | Hydraulic | Rescue and Clearing Vehicle/Tow truck |
| ZJJ10 | 10T | 98 | 17 | Hydraulic | Rescue and Clearing Vehicle/Tow truck |
| ZJJ15 | 15T | 147 | 16 | Hydraulic | Rescue and Clearing Vehicle/Tow truck |
| ZJJ25 | 25T | 245 | 18 | Hydraulic | Rescue and Clearing Vehicle/Tow truck |
| ZJJ30 | 30T | 300 | 18 | Hydraulic | Rescue and Clearing Vehicle/Tow truck |
Where to Buy Reliable Winches at a Competitive Price
Your supplier matters when buying a winch. You can buy directly from the winch manufacturers or employ distributors.
Manufacturers offer better prices. They can also personalize features based on your needs. This is useful when you have engineering tasks that need accuracy. You can also get new or specialty models that are unavailable online.
Single orders or one-time buys are simpler through distributors. They have regional stock and faster shipping. Their prices are also higher than factory-direct prices, however.
When buying for a firm or a project, always request a price quotation for bulk. Most suppliers offer quantity discounts. It is also a chance to negotiate on freight, payment terms, or extras like mounting kits.
Look into the warranty and after-sales service. A good warranty can save money in the long run. Some suppliers also offer technical support, replacement parts, or remote troubleshooting. That’s a huge benefit if you’re using the winch in a remote area or high-demand job.
Also check if the supplier provides certification or testing documents. For industrial or government contracts, this is often required.
Before placing an order, compare:
- Load rating
- Power source
- Duty cycle
- Gear type
- Maintenance intervals
Pricing should be one factor—not the sole factor. A cheap winch that breaks quickly may end up being more costly than a solidly constructed one that provides years of service.
FAQs – Choosing the Right Winch by Tonnage
- Q1: Is a 5-ton winch enough for pulling a fully loaded excavator?
It will differ depending on the excavator weight and ground. A filled mid-size excavator can weigh more than 5 tons, especially on a hill or in mud. For safety, always choose a 1.5 to 2 times rated load winch.
- Q2: What’s the difference between static and dynamic load capacity?
Static load is how much weight the winch can endure without moving. Dynamic load is how much weight it can pull during movement. Always use the dynamic rating—it’s the true test of performance under application.
- Q3: How do I know if the winch is durable for outdoor environments?
Look for sealed motors, rust-resistant coatings, and IP ratings. Weather-resistant casing and tough construction allow the winch to tolerate dust, rain, and extreme temperatures.
- Q4: Which power type is more cost-effective in the long run: hydraulic or electric?
Hydraulic winches last longer under high loads. They’re better suited for long-term usage. Electric winches are cheaper upfront and easier to install, but may wear out quicker with high loads. Over the long term, hydraulic could be more cost-effective in industrial usage.
Conclusion
Finding the right winch isn’t all about picking the correct size—it’s finding the right tool for the right job. Whether you’re handling lightweight materials or lifting heavy-duty industrial equipment, there is a winch out there that fits your need and budget.
If you’re not certain what tonnage or type of power to apply, don’t guess. A quick phone call to an engineer or supplier can cost you less time, money, and trouble down the road.
Zhihe offers the whole range of winches made with durability, performance, and value in mind.
Explore the full catalog or get in touch for expert help.
