In the high-stakes world of foundation piling, water well drilling, and mining, the hydraulic winch is more than just a lifting tool; it is the central nervous system of your rig. A minor failure in the transmission or braking system doesn’t just halt production—it leads to catastrophic downtime, expensive cable snaps, and severe safety risks.
As a premier hydraulic winch manufacturer and a key strategic supplier for global engineering giants like SANY, XCMG, and ZOOMLION, Zhihe Intelligent Equipment (Jinan) Co., Ltd. provides this deep-dive technical analysis. Whether you are a procurement manager or a site engineer, this guide will help you optimize equipment performance and operational safety.
1. Engineering Excellence: The Power of Integrated Planetary Reducers
For modern drilling applications, the integration of a planetary gear reducer directly within the winch drum has become the industry gold standard. But why has the industry moved away from traditional spur gear or worm gear designs?
The Mechanics of Torque Distribution
Unlike traditional gears that focus the entire load on a single contact point, planetary systems distribute the torque across multiple gear points (the sun gear, three or more planet gears, and the outer ring gear).
- Extreme Torque Density: This distribution allows the winch to handle massive “breakout forces” required when a drill string gets stuck in heavy clay or rocky strata.
- Space-Saving Coaxial Design: Because the planetary reducer is housed inside the drum, the overall footprint of the winch is minimized. This is critical for mobile drilling rigs where deck space is at a premium.
- Protection from Contaminants: By “tucking” the motor and reducer inside the drum, the most sensitive mechanical components are shielded from the abrasive slurry and dust typical of piling sites.
2. Material Science: Why 20CrMnTi is the “Secret Sauce” for Heavy Duty
In technical SEO, specificity builds trust. While many mid-range manufacturers use 42CrMo (Chrome-Moly steel) because it is easier to machine, Zhihe utilizes 20CrMnTi (Chrome-Manganese-Titanium alloy steel) for our high-performance series.
The Carburizing & Quenching Advantage
The lifespan of a winch is determined by its gear teeth. Here is how our 20CrMnTi components outperform the competition:
- Surface Hardness (HRC58-62): Through a rigorous carburizing process (introducing carbon into the surface layer at high heat), we create a “diamond-hard” exterior. This prevents the “pitting” and wear caused by the constant friction of heavy lifting.
- Core Ductility: Unlike 42CrMo, which can become brittle if over-hardened, 20CrMnTi maintains a ductile (flexible) core. When a drill bit hits a rock layer and sends a “snatch load” back up the cable, our gears flex slightly rather than snapping.
- Fatigue Resistance: In continuous 24/7 drilling operations, 20CrMnTi offers a 30% higher fatigue limit, meaning fewer mid-project gear failures.
3. The “Last Line of Defense”: Multi-Disc Static Brakes
In drilling, “gravity” is a constant enemy. A winch must not only lift but hold. Zhihe winches utilize a normally closed, multi-disc hydraulic static brake.
- Fail-Safe Operation: The brake is spring-applied and hydraulically released. If your rig loses hydraulic pressure or an engine stalls, the winch locks automatically, preventing the drill string from falling.
- Brake Torque Safety Factor: We engineer our brakes to provide a minimum of 1.5x to 2x the rated line pull torque. This redundancy is what separates industrial-grade winches from “budget” alternatives.
4. Selecting the Right Winch for Your Specific Rig
A common mistake in procurement is buying based on “Line Pull” alone. You must match the winch to the Duty Cycle of the machine.

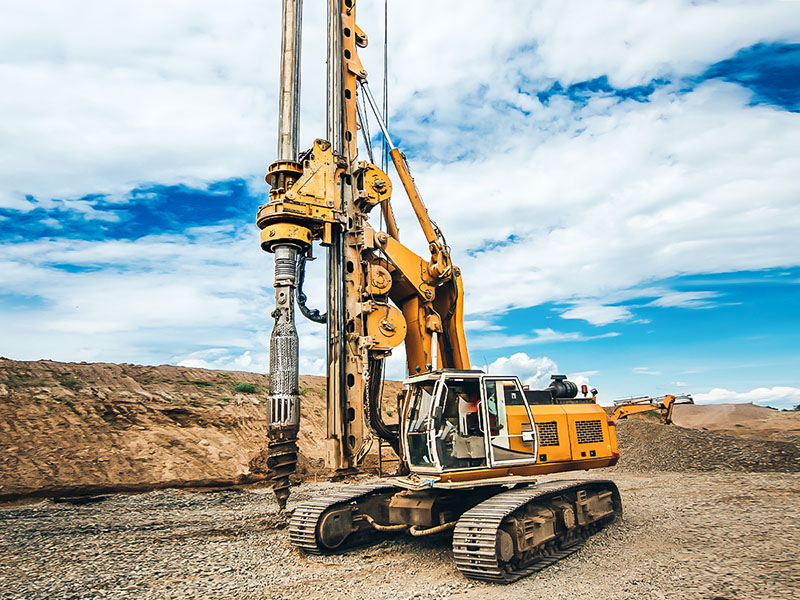

A. Rotary Drilling Rigs (Piling)
Main winches for rotary rigs like the SANY SR-Series or XCMG XR-Series require extremely fast line speeds and high-duty cycles. Our winches are designed with high-flow ports to prevent overheating during rapid cycles.
B. Water Well and Geothermal Rigs

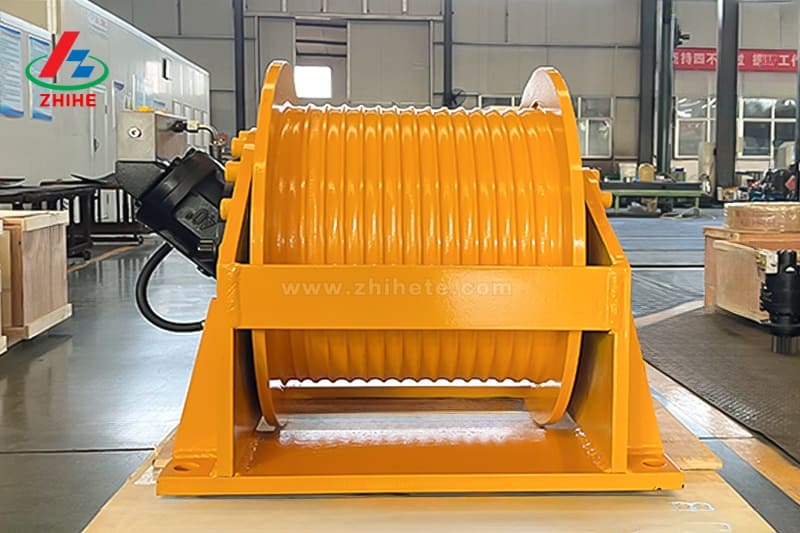

These rigs often drill to depths of 300m to 1000m. This requires massive rope capacity. We utilize Lebus Grooved Drums, which force the wire rope into a precise pattern.
- The Result: You avoid “rope crushing” and bird-nesting, extending your expensive wire rope’s life by up to 300%.
C. Core and Exploration Drilling
In mineral exploration, you need “feel.” Our winches are paired with piston motors (often compatible with Rexroth A2FE series) to provide ultra-smooth, low-speed control for delicate core sample extraction.
5. Technical Specifications: The Data Sheet Checklist
When comparing quotes, ensure you are looking at these three critical factors:
- Line Pull (1st Layer vs. Full Drum): Always check the 1st layer pull. As the rope layers build up, the effective pulling power decreases due to the change in the torque arm.
- Hydraulic System Compatibility: Our winches are designed to integrate seamlessly with Rexroth, Sauer-Danfoss, and Kawaski pumps. We provide custom manifold blocks to match your rig’s existing plumbing.
- Volumetric Efficiency: High-quality internal seals ensure that 95% of your hydraulic energy is converted into lifting force, reducing fuel consumption for the rig’s engine.
6. Maintenance and Troubleshooting for Zero Downtime
To rank for “informational” search intent, we provide this expert maintenance protocol.
The “50-500-1000” Rule
- 50 Hours: The “Break-in” period. Change the gear oil immediately to remove microscopic metal shavings from the new gears.
- 500 Hours: Perform a Seal Inspection. If you see “sweating” around the drum flange, replace the skeleton oil seals to prevent dust from entering the gearbox.
- 1000 Hours: Full Gearbox Flush. Use high-quality EP (Extreme Pressure) Gear Oil to maintain the integrity of the 20CrMnTi gear surfaces.
Troubleshooting Common Issues
- Winch “Drifts” Under Load: Likely a worn brake disc or a leaking brake-release seal.
- Excessive Noise: Check for low oil levels or “aeration” in the hydraulic fluid.
- Jerky Movement: Often caused by air in the hydraulic lines or an incorrectly adjusted counterbalance valve.
7. Global Standards: Why Zhihe is the Choice for Exports
As a Chinese high-tech enterprise, Zhihe Intelligent Equipment is focused on the global market. We understand that a winch in Texas, USA or Munich, Germany must meet different standards than domestic models.
- Certifications: Fully CE and ISO9001:2015 certified.
- Global Support: We provide full CAD compatibility checks and 3D step files for your engineers to ensure the winch fits perfectly into your rig’s chassis before you even place an order.
- OEM Pedigree: Having supplied SANY, XCMG, and SHANTUI for years, we have mastered the art of balancing cost-efficiency with “Tier 1” reliability.
Conclusion: Partner with a Transmission Expert
Investing in a Zhihe hydraulic winch means investing in the uptime of your project. Our commitment to advanced metallurgy (20CrMnTi), precision planetary engineering, and global safety standards ensures that your rig remains the most reliable asset on the job site.
Ready to boost your rig’s lifting capacity? [Get a Custom Quote & CAD Compatibility Check] – Our engineering team responds to all technical inquiries within 24 hours.
