What Is a Slewing Reducer? How It Works and Its Applications in Machinery

Slewing reducers are the unsung heroes of the majority of heavy equipment. They allow massive components, like crane booms or excavator booms, to slowly rotate and hold heavy loads. Otherwise, these machines would be unable to move accurately or safely.

Slewing reducers are utilized in building construction to support cranes in lifting and swinging heavy loads accurately. In renewable power generation, they enable wind turbine blades to turn towards the wind. In industry, they drive rotating platforms and robot arms.

These reducers handle massive torque without affecting movement stability. That is why industries like construction, mining, shipbuilding, and energy rely on high-quality slewing reducers. These need heavy-duty, reliable components offering optimum performance on a daily basis.

In this guide, we will show you exactly what a slewing reducer is, how it works, and where it is of critical importance.

What Is a Slewing Reducer?

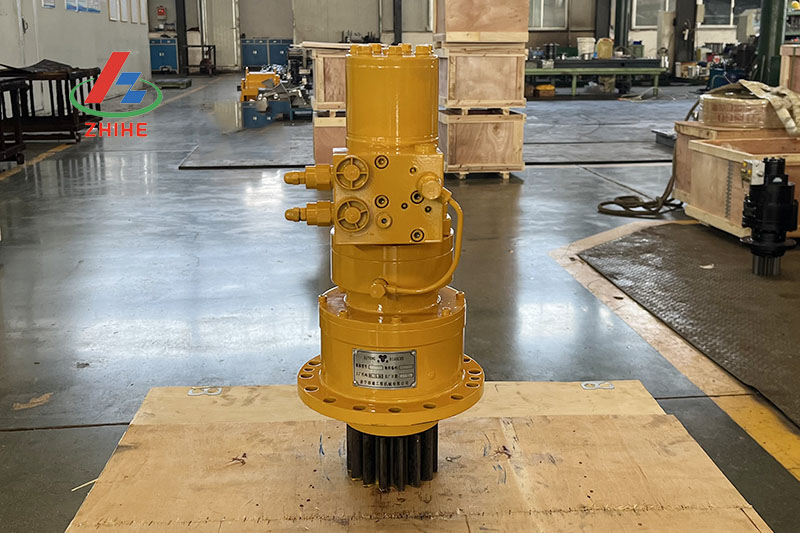

A slewing reducer is a special type of gear reducer. It’s used to rotate large equipment smoothly and with control. You’ll find it at the heart of many machines like tower cranes, wind turbines, and excavators.

The way it does this is through the conversion of high-speed input—usually from electric motors—into slowing down. In exchange, it produces high torque to maintain heavy loads. This is precisely why it is ideal for accurate rotation in difficult applications.

The internal parts of a slewing reducer are planetary gears, slew bearings, a splined shaft or output shaft, and a strong housing. The gear rings and turning gear rings within assist in motion control in confined spaces. Additionally, the modularity and compact nature of the unit ensure that it can be conveniently used across numerous industrial applications.

Slewing Reducer vs. Regular Gearbox

Although both a slewing reducer and an average gearbox decrease speed and step up torque, they’re designed for various applications.

An average gearbox is designed for transmitting linear power. A slewing drive is designed to turn. It combines with drive slewing rings and slewing rings so that the equipment can turn about a stationary axis.

Slewing reducers are available in both light and heavy-duty models. The heavier types are ideal for demanding applications like rotating platforms, tower cranes, and large construction cranes. Thanks to their strength and gear efficiency, they are often paired with valves and brakes to ensure safe and controlled rotation.

This makes slewing reducers the optimal choice when you need controlled rotation, heavy support, and heavy power for very large machines.

How Does a Slewing Reducer Work?

Slewing reducers often contain a planetary gear set. These gears are specifically designed so that they evenly carry the load and drive durability while minimizing wear. The gear reducer receives high-speed rotation from electric motors and slows the rotation down. This creates more torque, which is needed to rotate large equipment pieces or machinery.

By optimal force distribution through the planetary gear mechanism, the reducer achieves smooth, strong rotation. Precision of this nature is essential to industrial uses such as tower cranes or construction hoists, in which movement needs to be accurate. Thanks to their compact size and high performance, slewing reducers are also ideal where installation space is limited.

To understand more about how gear systems improve industrial efficiency, explore our guide on the Top 5 Benefits of Using High-Quality Winch Reducers in Industrial Applications.

Types of Slewing Reducers

• Planetary Slewing Reducers are characterized by their efficiency, high torque, and modularity. They’re typically employed where reliability, compactness, and strength are required. They’re ideal for lifts, robotics, and cranes.
• Worm Gear Slewing Reducers have a worm and worm gear type. The modular design provides a self-locking function, which makes them ideal for retaining loads. That is why it can be utilized in a range of specific applications where safety is a major concern.Combination Reducers are compound reducers. They embrace the qualities of both dana planetary gear units and worm gear systems. They are designed for industrial use, requiring precision and flexibility

Key Applications of Slewing Reducers in Machinery

Slewing reducers are used in many machines. They provide constant smooth rotation for heavy parts. They control weight and regulate motion. There are various industries that use them on a daily basis.

Slewing Reducers in Construction Machinery

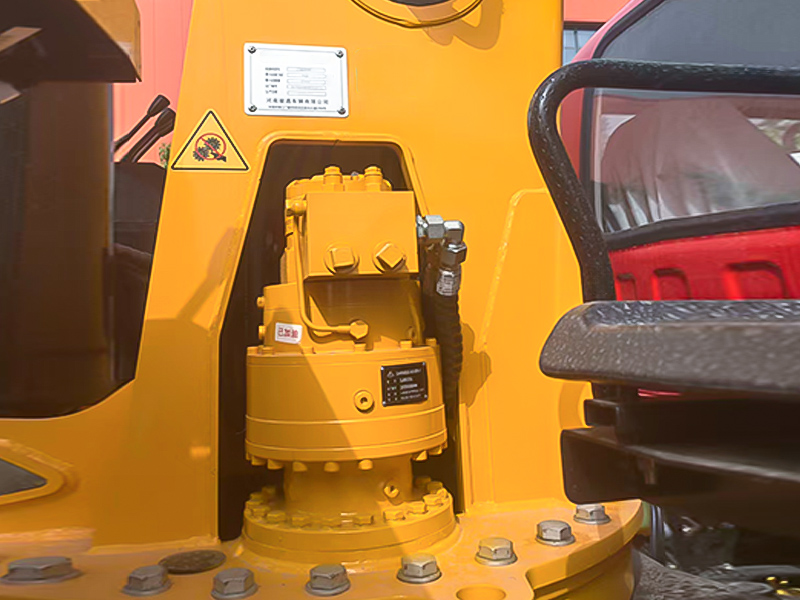

Slewing reducers find use in cranes, excavators, and bulldozers. Slewing reducers help move the arms, booms, and cabins. These pieces of equipment need to rotate safely and stay stationary. Slewing reducers are responsible for giving them strength and control. Slewing reducers play a crucial role in hoisting heavy loads on construction sites.

Slewing Reducers in Renewable Energy Equipment

Wind turbines have to be exposed to the wind. Slewing reducers rotate the nacelle to allow this. Slewing reducers ensure the turbine is at the right angle. This helps in ensuring clean power is more efficient. Without slewing reducers, the system will not work optimally.

Slewing Reducers in Material Handling Systems

Slewing reducers are also applied in warehouses and factories. They also show up in turntables, robot arms, and conveyors. These are used to move goods from one point to another. Slewing reducers make sure everything is rotating as required. This keeps work fast and precise.

Slewing Reducers in Aerial Work Platforms and Rescue Operations

Slewing reducers are used on lift platforms. They include rescue lifts and work platforms. The reducer helps the platform rotate and stay in place. This is important for safety when working at heights. Workers rely on this smooth movement to do their job.

Advantages of Using Slewing Reducers in Industrial Machinery

Slewing reducers aren’t just strong—they’re smart. They have beneficial advantages that contribute to making machines efficient and safer to use. Let’s talk about why they matter so much in industrial contexts.

Accuracy and Control

Slewing reducers allow for smooth, controlled motion. This is essential in factory and construction machinery. Heavy components can be manipulated by operators with precise control. That means enhanced results and reduced errors. Accuracy also improves jobsite safety.

Load Capacity and Durability

These reducers are made for heavy loads. They withstand pressure without being damaged. Rough gears and housing material allow them to function for years. Even in extreme environments, they are dependable. This reduces repairs and downtime.

Reliability and Safety Key Features

Slewing reducers come with built-in safety components. They protect machines from overloading. They protect against sudden movement or drops. This is especially useful in high-risk applications like aerial lifts or rescue devices. With slewing reducers, operators can be sure their machines will operate safely.

How to Choose the Right Slewing Reducer for Your Machinery

Choosing the appropriate slewing reducer is important. The improper one leads to breakdowns or inefficiency. The successfully employed one improves efficiency and maintains smooth operation of your machinery.

Things to Consider When Choosing a Slewing Reducer

First, take load into consideration. How much weight does your machine need to move or rotate? Second, examine your speed and torque requirements. Slewing reducers operate by lowering speed and providing a greater amount of torque—so choose one that meets your operation.

Make sure the reducer can be used with your machine’s requirements. Think about things like motor compatibility and mounting types. If the reducer is incompatible, it won’t operate effectively.

Also consider the environment. Will the reducer be exposed to water, mud, or high heat? Some reducers are sealed for unfriendly environments. Others will need to have something added to them to last longer.

Choosing Between Different Slewing Reducer Models

There are some different types of slewing reducers. Each one does better for different uses.

Planetary reducers are strong and small. They’re ideal for heavy-duty applications like on an excavator, a crane, or a drilling rig. These work best when there is limited space but strength is required. In fact, planetary systems are also common in final drives, such as mini excavator final drives, which need both strength and precision.

Worm gear reducers are the way to go if you need self-locking. That is, they do not move even without power. They’re a smart option for safety-critical machinery like elevators or rotating platforms.

Each reducer has its purpose. The trick is identifying the right one for your equipment’s needs.

Installation and Maintenance Tips for Slewing Reducers

Correct installation and proper maintenance of slewing reducers ensure trouble-free operation and longer lifespan. Certain key steps can prevent premature failure and costly repairs.

Installation Best Practices

Start by aligning the slewing reducer properly to the machine. Misalignment would lead to uneven wear and decreased performance. Use the proper tools and double-check dimensions. Always use the lubricant recommended before use. Lubrication reduces friction and prevents damage.

Tirefully adhere to manufacturer installation guidance. Each reducer has its own. Ignoring them will lead to premature failures. Tighten each bolt as instructed and inspect the connections before running the machine.

Maintenance for Extensive Use

• Regular inspections are essential. Inspect the gears for wear. Look for metal shavings or unusual markings. These could be a sign of internal damage.
• Check lubrication levels regularly. Running without adequate oil creates friction and overheating.
• Check that seals are undamaged. Damaged seals let dirt or water enter, harming internal parts.
• Notice signs of trouble like a high-pitched sound, vibration, or excessive heat. These typically are symptoms of something amiss. Fixing small issues before they become larger saves repair bills later on.

By proper maintenance and early repair, you can increase the lifespan of your slewing reducer and avoid downtime.

Frequently Asked Questions (FAQ)

Q: What is the typical lifespan of a slewing reducer?
A: Most last 8–15 years with proper care. Good maintenance can make them last longer.

Q: How do I know if I need a slewing reducer for my equipment?
A: If your machine needs to rotate heavy loads smoothly, you likely need one.

Q: Can slewing reducers handle extreme weather conditions?
A: Yes. Many are made to work in heat, cold, rain, or dust.

Q: Are slewing reducers compatible with all types of machinery?
A: No. You need to match it to your machine’s needs. Smaller machines may need mini final drives instead.

Conclusion

Slewing reducers keep heavy equipment stable, accurate, and efficient. They accomplish the task, support heavy loads, and enable machines to slide. The right reducer provides improved performance and a longer lifespan for your machine. To achieve optimal performance, follow proper installation and maintenance protocols.
