Introduction: Why the Slewing Mechanism is the “Heart” of Your Truck Crane
In the world of heavy construction, a truck-mounted crane’s versatility hinges on its ability to position loads with millimeter precision. This rotation—the 360-degree pivot of the upper superstructure—is powered by the slewing mechanism (also known as the slew drive or slew gear).
As the “heart” of the crane, the slewing mechanism dictates operational speed, positioning accuracy, and, most importantly, site safety. Choosing the wrong drive can lead to sluggish performance or catastrophic mechanical failure. In this guide, we explore why planetary reduction gearboxes are the gold standard and provide a checklist for making the perfect selection.

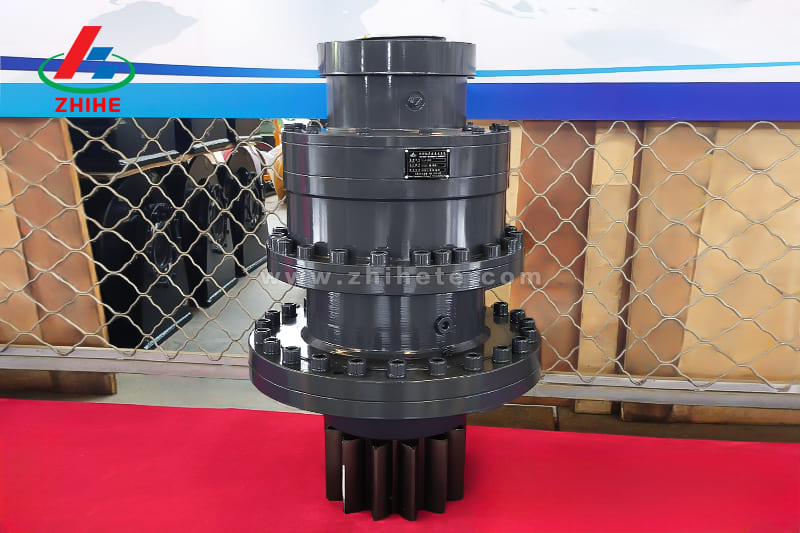

Part 1: Why Planetary Gearboxes are the Standard for Modern Slewing Drives
While older designs relied on worm gears, the planetary gearbox has emerged as the superior solution for mobile cranes due to its unique “solar system” gear arrangement.
Key Advantages:
- Immense Torque Density: By distributing loads across multiple planet gears, these systems transmit significantly more torque within a compact, lightweight package—crucial for chassis-mounted equipment.
- Superior Efficiency: Planetary systems often exceed 95% efficiency, far outperforming worm gears (50-70%). This prevents hydraulic power from wasting away as heat.
- Smooth Operation: The high gear-contact ratio ensures balanced rotation, eliminating the “jerking” motions that endanger delicate loads during start-up or stopping.
Part 2: The 5 Critical Specifications (Your Selection Checklist)
To ensure your crane operates reliably under heavy stress, you must match the gearbox to these five parameters:
1. Output Torque (Rated vs. Peak)
The drive must overcome inertia, wind load, and gradient resistance (slewing “uphill”).
- Selection Tip: Always calculate a safety margin. A professional service factor ensures the drive can handle sudden wind gusts or emergency stops without stripping gears.
2. Reduction Ratio
This dictates the balance between speed and precision.
- High Ratio (e.g., 100:1): Slow speed but incredible “micro-control” for structural steel or glass placement.
- Low Ratio (e.g., 30:1): Faster cycle times for scrap handling or utility work.
3. SAHR Braking System (The Fail-Safe)
Safety is non-negotiable. Look for an integrated Spring-Applied, Hydraulically-Released (SAHR) multi-disc brake.
- The Benefit: This acts as an automatic parking brake. If hydraulic pressure drops, the internal springs instantly lock the boom, preventing dangerous “drifting.”
4. Load Capacity (Axial, Radial, and Moment)
The slew drive’s bearings must support massive tilting forces (moment loads) when lifting at a long radius.
- ZHIHE Standard: High-quality drives use heavy-duty tapered roller bearings to ensure the internal gearing remains aligned under extreme stress.

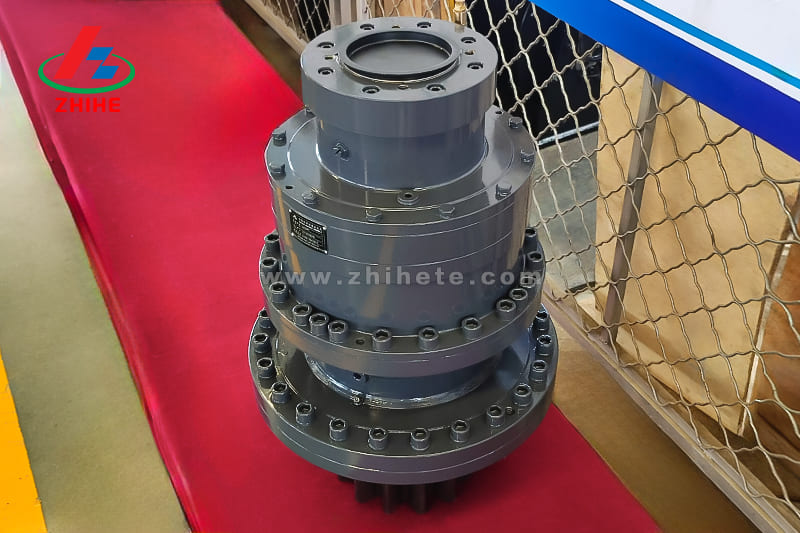

5. Mounting Interface & Pinion Matching
The output pinion must be an exact match (module, teeth count, and pressure angle) to the slew ring. Any mismatch leads to rapid, destructive wear.
Part 3: Technical Comparison Table
| Specification | Importance | Recommended Target |
| Output Torque | High | Max Operational Torque $\times$ 1.5 Safety Factor |
| Efficiency | Operational ROI | $>95\%$ (Multi-stage Planetary) |
| Brake Type | Safety | Integrated SAHR Multi-disc Wet Brake |
| Heat Treatment | Durability | Carburized and Quenched Alloy Steel |
| IP Rating | Protection | IP66/IP67 for dust and water resistance |
Part 4: The ZHIHE Advantage: Quality Beyond the Spec Sheet
When selecting a manufacturer, look for industrial specialization. ZHIHE specializes in planetary solutions specifically for off-highway machinery.
- Material Science: We use high-strength 20CrMnTi alloy steel. Our advanced heat treatment creates a hard, wear-resistant surface with a tough core to absorb shock loads.
- OEM Compatibility: Our drives are engineered for seamless integration with leading hydraulic motors, including Rexroth, Danfoss, and Eaton.
- Global Support: A crane that is “down” is losing money. We prioritize spare parts availability and technical engineering support for our international wholesalers.
Part 5: Common Failures and Maintenance Tips
To maximize your investment, follow these preventive maintenance (PM) steps:
- Lubrication: Change gear oil after the first 500 hours (break-in) and every 2,000 hours thereafter.
- Bolts Torque: Periodically check mounting bolts to ensure vibration hasn’t loosened the interface.
- Seal Inspection: Watch for oil leaks at the output shaft; catching a seal leak early prevents catastrophic bearing failure.
Frequently Asked Questions (FAQ)
Q: Can a slewing drive handle side-loading?
A: Yes, provided the internal bearings are rated for “moment loads.” Specialized planetary drives are specifically designed for this.
Q: Why is my slewing motion noisy?
A: This usually indicates gear tooth wear or contamination in the lubricant. Immediate inspection is required to prevent a full system failure.
Q: Does ZHIHE provide custom gear ratios?
A: Yes. We offer customized planetary reduction ratios to balance speed and torque for specific crane applications.
Conclusion: A Precision Investment
Selecting the right slewing mechanism is a calculated investment in your machine’s safety and profitability. By choosing a high-efficiency planetary design and a manufacturer with deep technical expertise like ZHIHE, you ensure every rotation is smooth, precise, and powerful.
